NLN125
LED Linear Light, 68x90mm, Up And Down Light, CCT & Wattage Selectable, 0.6m~1.5m Length
Up and down light version available
3CCT & mult-power switch model available
Available in black, grey & white colors
| Code | NLN125-0.6m | NLN125-0.9m | NLN125-1.2m | NLN125-1.5m |
|---|---|---|---|---|
| Dimension(mm) | 600x68x90 | 900x68x90 | 1200x68x90 | 1500x68x90 |
| Watt(W) | 30W | 40W | 50W | 60W |
| Rated Input Voltage | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
| Light Source | 2835 | 2835 | 2835 | 2835 |
| SDCM | <6 | <6 | <6 | <6 |
| CCT(K) | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K |
| CCT Selection DIP Switch | YES | YES | YES | YES |
| Luminous Flux (lm) | 3300 | 4400 | 5500 | 6600 |
| CRI | 80 | 80 | 80 | 80 |
| Beam Angle (°) | 120° | 120° | 120° | 120° |
| LED Driver | Driver built-in | Driver built-in | Driver built-in | Driver built-in |
| Dimming Option | YES | YES | YES | YES |
| Sensor | NO | NO | NO | NO |
| Emergency Kits | NO | NO | NO | NO |
| Electrical Class | Class I | Class I | Class I | Class I |
| Ingress Protection(IP Rating) | IP20 | IP20 | IP20 | IP20 |
| Impact Resistance(IK Rating) | IK06 | IK06 | IK06 | IK06 |
| Product Finishing | White/ Black/ Sliver | White/ Black/ Sliver | White/ Black/ Sliver | White/ Black/ Sliver |
| Optics Material | PC | PC | PC | PC |
| Housing Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Lifetime (hr) | 50,000h | 50,000h | 50,000h | 50,000h |
| Glow wire test (°C) | 650°C | 650°C | 650°C | 650°C |
| Operating Temp.(°C) | -20°C~45°C | -20°C~45°C | -20°C~45°C | -20°C~45°C |
| Storage Temp.(°C) | -20°C~65°C | -20°C~65°C | -20°C~65°C | -20°C~65°C |

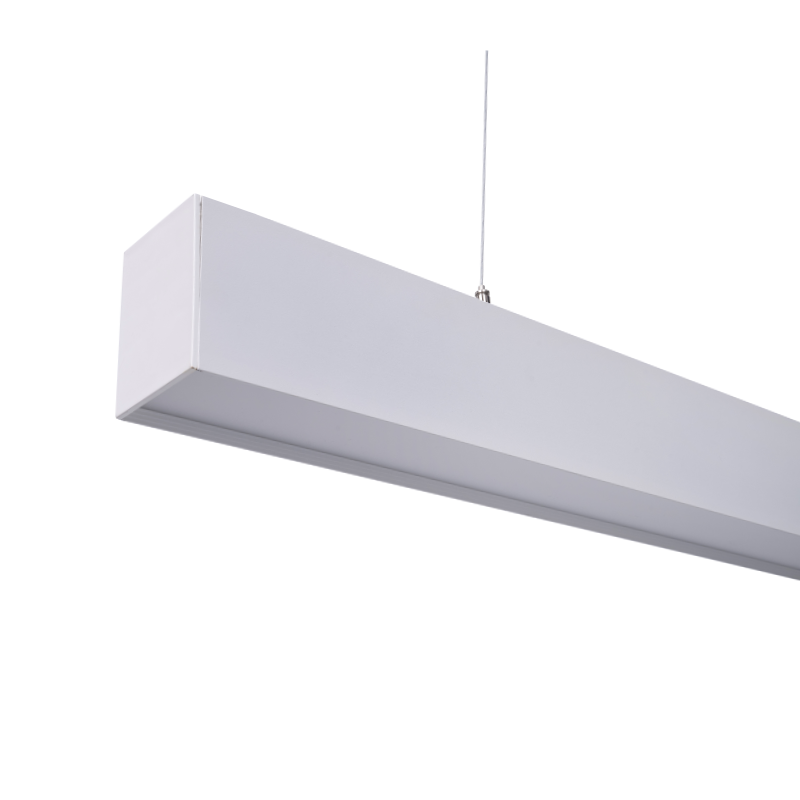

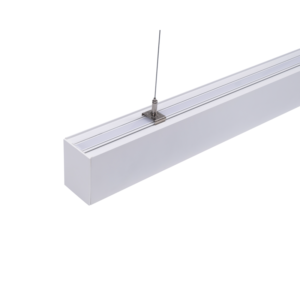

| Installation | Suspended mounting and surface mounting | Suspended mounting and surface mounting | Suspended mounting and surface mounting | Suspended mounting and surface mounting |
