NLN114

LED Linear Light, 50x75mm, Freely combined to form various shapes, CCT & Wattage Selectable, 0.6m~2.4m Length

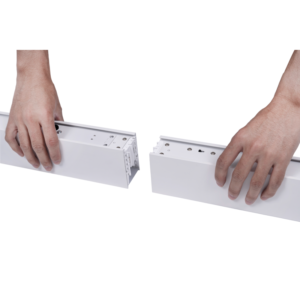

Fast connecting one by one, easy for electricians
Different shapes connector available: L, T, cross and round
Different diffusers available: opal, micro-prism, reflector
3CCT & multi-power switch, up and down light version available
NBT114 LED batten specification icons — voltage, lifetime, warranty and IP rating
Send Inquiry
Code NLN114-0.6m NLN114-1.2m NLN114-1.5m NLN114-1.8m NLN114-2.4m NLN114L NLN114T NLN114C NLN114R
Dimension(mm) 600x50x75 1200x50x75 1490x50x75 1790x50x75 2390x50x75 155x75x155 250x75x150 250x75x250 225x75x230
Watt(W) 18W 30W 38W 45W 60W 12W 9W 15W 15W
Rated Input Voltage AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V
Light Source 2835 2835 2835 2835 2835 2835 2835 2835 2835
SDCM <6 <6 <6 <6 <6 <6 <6 <6 <6
CCT(K) 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K
CCT Selection DIP Switch YES YES YES YES YES NO NO NO NO
Luminous Flux (lm) 1800 3000 3800 4500 6000 1200 900 1500 1500
CRI 80 80 80 80 80 80 80 80 80
Beam Angle (°) 120° 120° 120° 120° 120° 120° 120° 120° 120°
LED Driver Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in
Dimming Option YES YES YES YES YES YES YES YES YES
Sensor NO NO NO NO NO NO NO NO NO
Emergency Kits NO YES YES YES YES NO NO NO NO
Electrical Class Class I Class I Class I Class I Class I Class I Class I Class I Class I
Ingress Protection(IP Rating) IP20 IP20 IP20 IP20 IP20 IP20 IP20 IP20 IP20
Impact Resistance(IK Rating) IK06 IK06 IK06 IK06 IK06 IK06 IK06 IK06 IK06
Product Finishing White/ Black/ Sliver White/ Black/ Sliver White/ Black/ Sliver White/ Black/ Sliver White/ Black/ Sliver White/ Black/ Sliver White/ Black/ Sliver White/ Black/ Sliver White/ Black/ Sliver
Optics Material PC PC PC PC PC PC PC PC PC
Housing Material Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
Lifetime (hr) 50,000h 50,000h 50,000h 50,000h 50,000h 50,000h 50,000h 50,000h 50,000h
Glow wire test (°C) 650°C 650°C 650°C 650°C 650°C 650°C 650°C 650°C 650°C
Operating Temp.(°C) -20°C~45°C -20°C~45°C -20°C~45°C -20°C~45°C -20°C~45°C -20°C~45°C -20°C~45°C -20°C~45°C -20°C~45°C
Storage Temp.(°C) -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C

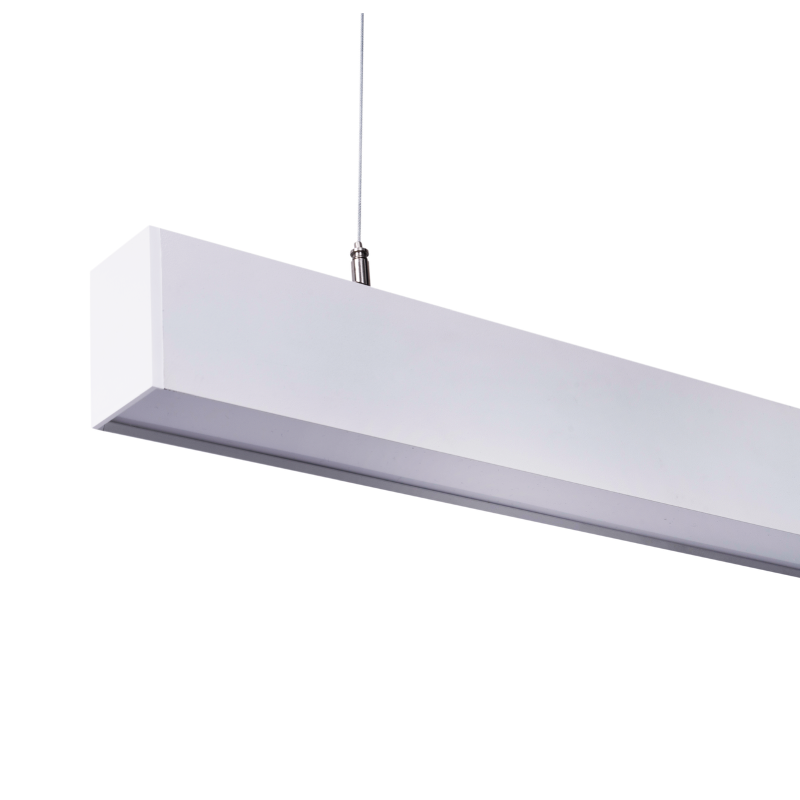

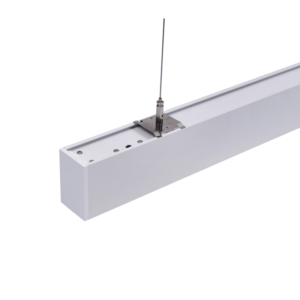

Installation Suspended mounting and surface mounting Suspended mounting and surface mounting Suspended mounting and surface mounting Suspended mounting and surface mounting Suspended mounting and surface mounting Suspended mounting and surface mounting Suspended mounting and surface mounting Suspended mounting and surface mounting Suspended mounting and surface mounting
