NCL121

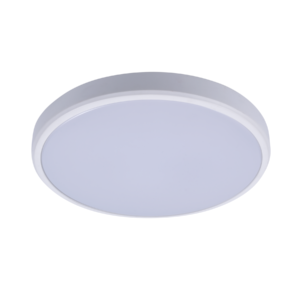

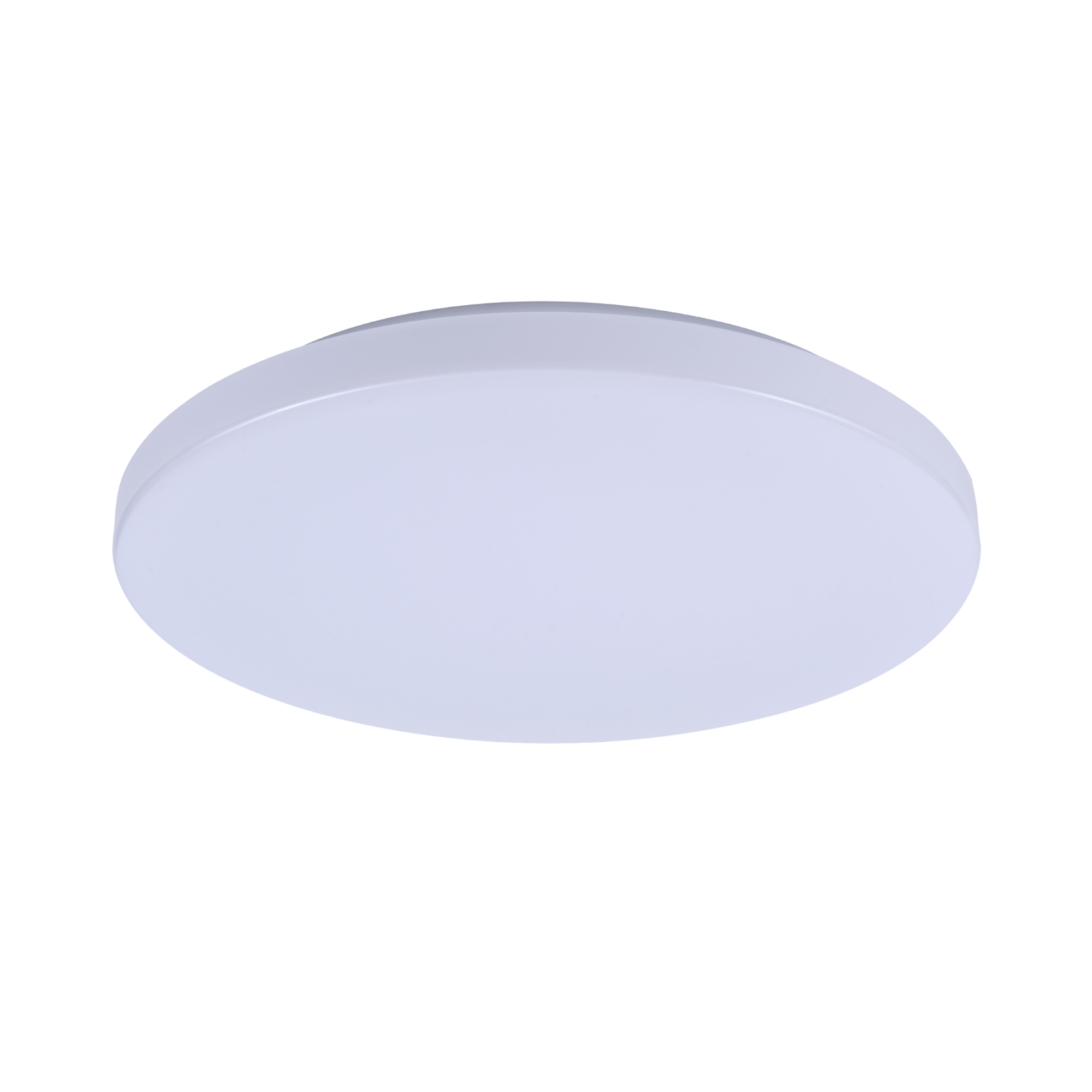

LED ceiling light with detachable decorative bezels for Northern Europe.

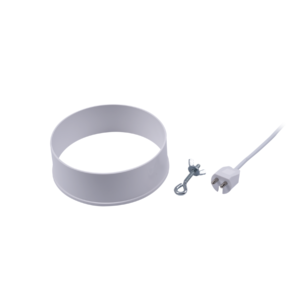

Accessories available for Northern Europe
CCT switch option available
With and without frame versions available

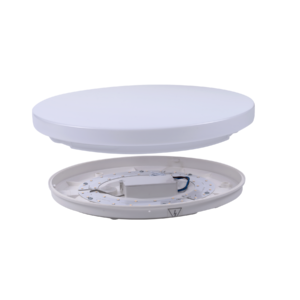

Easy fit diffuser
NCL121 LED ceiling light specification icons — voltage, lifetime, warranty and IP rating
Send Inquiry
Code NCL121A-15W NCL121A-24W NCL121A-28W NCL121A-42W NCL121B-15W NCL121B-24W
Dimension(mm) Φ300x57mm Φ350x62mm Φ420x67mm Φ580x72mm Φ300x57mm Φ350x62mm
Watt(W) 15W 24W 28W 42W 15W 24W
Rated Input Voltage AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V
Light Source 2835 2835 2835 2835 2835 2835
SDCM <6 <6 <6 <6 <6 <6
CCT(K) 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K
CCT Selection DIP Switch YES YES YES YES YES YES
Luminous Flux (lm) 1500 2400 2800 4200 1200 1920
CRI 80 80 80 80 80 80
Beam Angle (°) 120° 120° 120° 120° 120° 120°
LED Driver Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in
Dimming Option NO NO NO NO NO NO
Sensor NO NO NO NO NO NO
Emergency Kits NO NO NO NO NO NO
Electrical Class Class II Class II Class II Class II Class II Class II
Ingress Protection(IP Rating) IP20 IP20 IP20 IP20 IP20 IP20
Impact Resistance(IK Rating) N/ A N/ A N/ A N/ A N/ A N/ A
Product Finishing White White White White White White
Optics Material PMMA PMMA PMMA PMMA PMMA PP
Housing Material PP PP PP PP PP base+ ABS bezel PP base+ ABS bezel
Lifetime (hr) 30,000h 30,000h 30,000h 30,000h 30,000h 30,000h
Glow wire test (°C) 650°C 650°C 650°C 650°C 650°C 650°C
Operating Temp.(°C) -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C
Storage Temp.(°C) -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C
Installation Surface Mounting Surface Mounting Surface Mounting Surface Mounting Surface Mounting Surface Mounting
