NCL117S

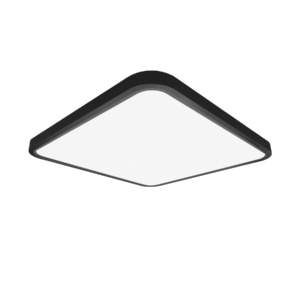

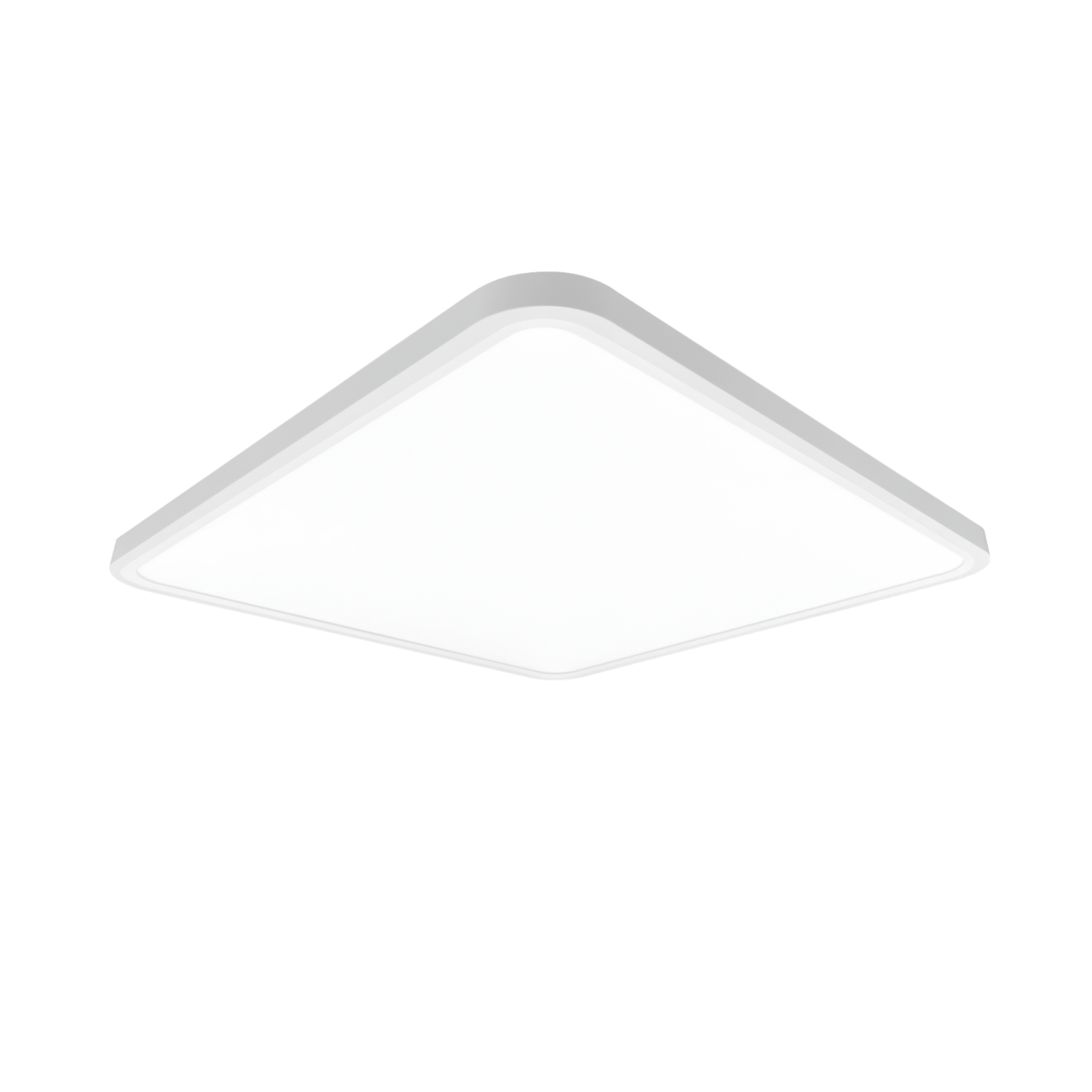

Ultra-slim LED ceiling light with CCT selectable and remote control. Round version available: NCL117R.
Edge-lit ceiling light with ultra-thin shape

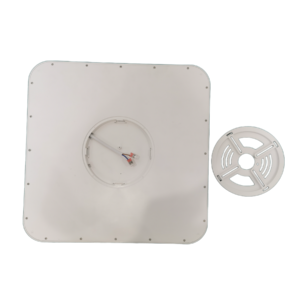

Speed-fit bracket and slim terminal for easy installation
CCT switch option available
Remote control version available
Various body colours available
NCL117S LED ceiling light specification icons — voltage, lifetime, warranty and IP rating
Send Inquiry
Code NCL117S-18W NCL117S-24W NCL117S-36W NCL117S-50W NCL117S-70W
Dimension(mm) 230x230x25mm 300x300x25mm 400x400x25mm 500x500x25mm 300x1200x25mm
Watt(W) 18W 24W 36W 50W 70W
Rated Input Voltage AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V
Light Source 2835 2835 2835 2835 2835
SDCM <6 <6 <6 <6 <6
CCT(K) 3000K/ 4500K/ 6500K 3000K/ 4500K/ 6500K 3000K/ 4500K/ 6500K 3000K/ 4500K/ 6500K 3000K/ 4500K/ 6500K
CCT Selection DIP Switch YES YES YES YES YES
Luminous Flux (lm) 1620 2160 3240 4500 6300
CRI 80 80 80 80 80
Beam Angle (°) 120° 120° 120° 120° 120°
LED Driver Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in
Dimming Option NO NO NO NO NO
Sensor NO NO NO NO NO
Emergency Kits NO NO NO NO NO
Electrical Class Class II Class II Class II Class II Class II
Ingress Protection(IP Rating) IP20 IP20 IP20 IP20 IP20
Impact Resistance(IK Rating) N/ A N/ A N/ A N/ A N/ A
Product Finishing White White White White White
Optics Material ABS ABS ABS ABS PC
Housing Material ABS ABS ABS ABS PC
Lifetime (hr) 30,000h 30,000h 30,000h 30,000h 30,000h
Glow wire test (°C) 650°C 650°C 650°C 650°C 650°C
Operating Temp.(°C) -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C
Storage Temp.(°C) -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C
Installation Surface Mounting Surface Mounting Surface Mounting Surface Mounting Surface Mounting
