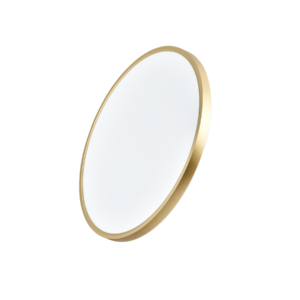

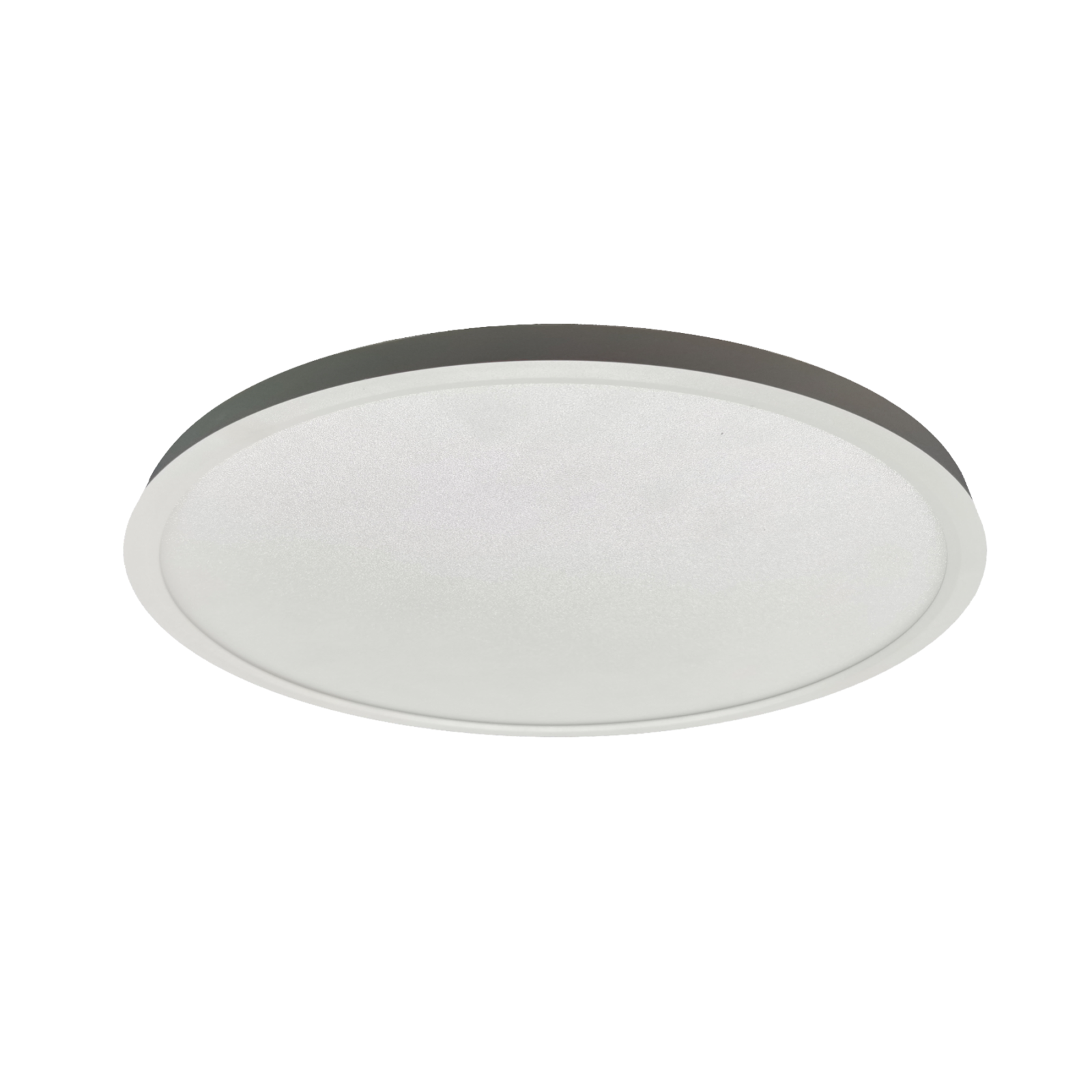

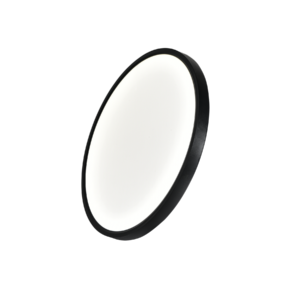

NCL117R

Ultra-slim LED ceiling light with CCT selectable and remote control. Square version available: NCL117S.
Edge-lit ceiling light with ultra-thin shape

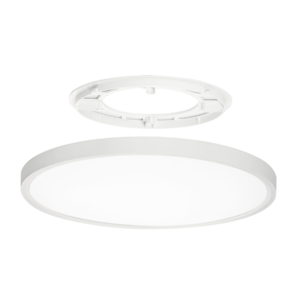

Speed-fit bracket and slim terminal for easy installation
CCT switch option available
Remote control version available
Various body colours available
NCL117R LED ceiling light specification icons — voltage, lifetime, warranty and IP rating
Send Inquiry
Code NCL117R-18W NCL117R-24W NCL117R-36W NCL117R-40W NCL117R-50W NCL117R-70W
Dimension(mm) Φ220x25mm Φ300x25mm Φ400x28mm Φ480x28mm Φ600x28mm Φ750x28mm
Watt(W) 18W 24W 36W 40W 50W 70W
Rated Input Voltage AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V
Light Source 2835 2835 2835 2835 2835 2835
SDCM <6 <6 <6 <6 <6 <6
CCT(K) 3000K/ 4500K/ 6500K 3000K/ 4500K/ 6500K 3000K/ 4500K/ 6500K 3000K/ 4500K/ 6500K 3000K/ 4500K/ 6500K 3000K/ 4500K/ 6500K
CCT Selection DIP Switch YES YES YES YES YES YES
Luminous Flux (lm) 1620 2160 3240 3600 4500 6300
CRI 80 80 80 80 80 80
Beam Angle (°) 120° 120° 120° 120° 120° 120°
LED Driver Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in
Dimming Option NO NO NO NO NO NO
Sensor NO NO NO NO NO NO
Emergency Kits NO NO NO NO NO NO
Electrical Class Class II Class II Class II Class II Class II Class II
Ingress Protection(IP Rating) IP20 IP20 IP20 IP20 IP20 IP20
Impact Resistance(IK Rating) N/ A N/ A N/ A N/ A N/ A N/ A
Product Finishing White White White White White White
Optics Material PP PP PP PP PC PC
Housing Material PP PP PP PP PC PC
Lifetime (hr) 30,000h 30,000h 30,000h 30,000h 30,000h 30,000h
Glow wire test (°C) 650°C 650°C 650°C 650°C 650°C 650°C
Operating Temp.(°C) -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C
Storage Temp.(°C) -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C
Installation Surface Mounting Surface Mounting Surface Mounting Surface Mounting Surface Mounting Surface Mounting
