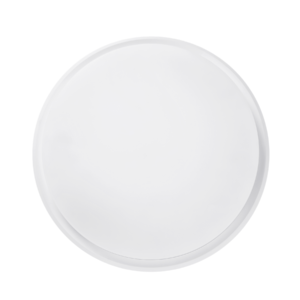

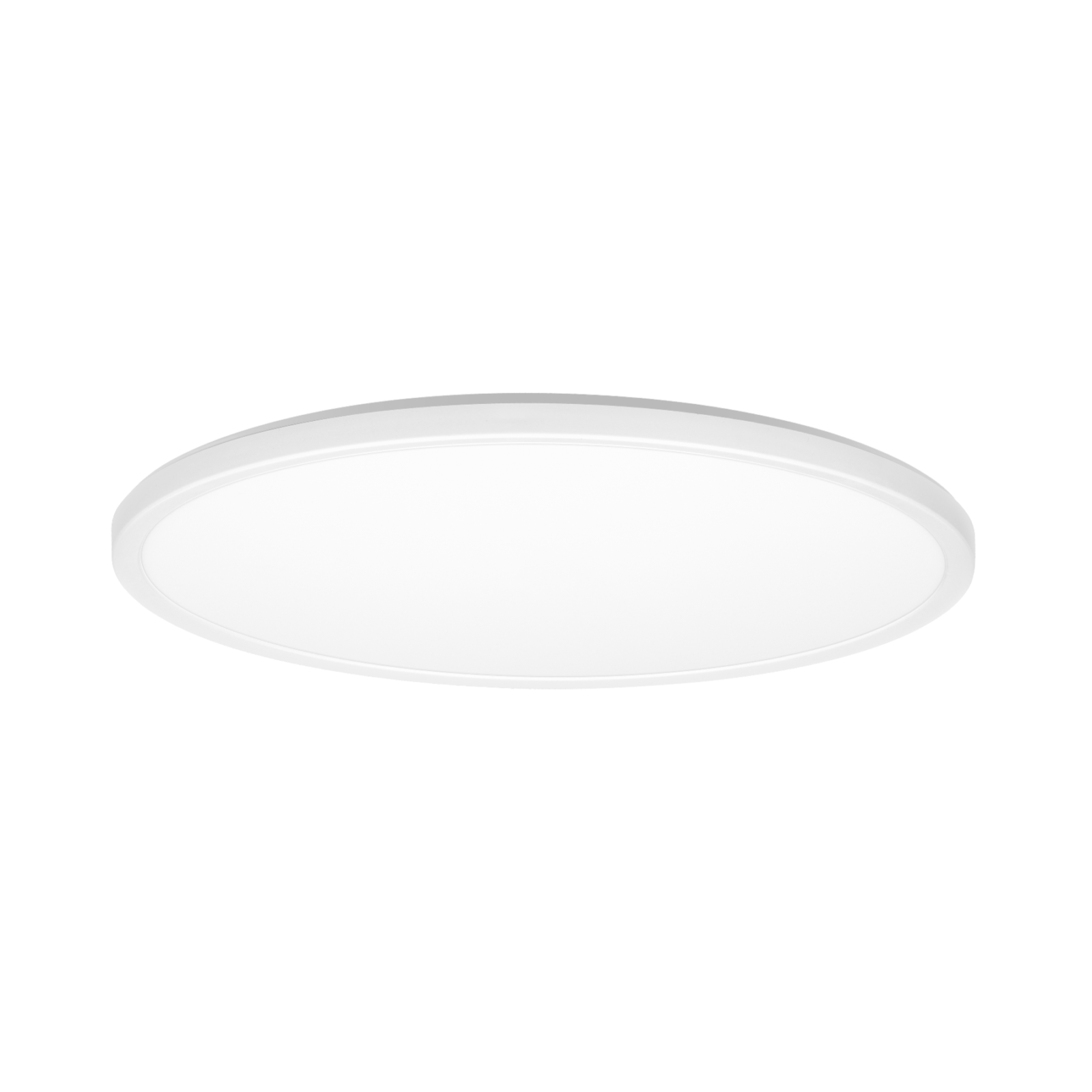

NCL115R
LED ceiling light with CCT selectable and remote control. Square version available: NCL115S.

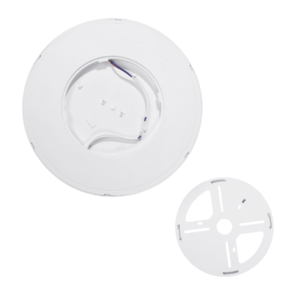

Speed-fit bracket and slim terminal for easy installation
CCT switch option available
Remote control version available
| Code | NCL115R-18W | NCL115R-24W | NCL115R-32W | NCL115R-40W |
|---|---|---|---|---|
| Dimension(mm) | Φ230x55mm | Φ300x55mm | Φ400x55mm | Φ470x55mm |
| Watt(W) | 18W | 24W | 32W | 40W |
| Rated Input Voltage | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
| Light Source | 2835 | 2835 | 2835 | 2835 |
| SDCM | <6 | <6 | <6 | <6 |
| CCT(K) | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K |
| CCT Selection DIP Switch | YES | YES | YES | YES |
| Luminous Flux (lm) | 1800 | 2400 | 3200 | 4000 |
| CRI | 80 | 80 | 80 | 80 |
| Beam Angle (°) | 110° | 110° | 110° | 110° |
| LED Driver | Driver built-in | Driver built-in | Driver built-in | Driver built-in |
| Dimming Option | YES(Remote control) | YES(Remote control) | YES(Remote control) | YES(Remote control) |
| Sensor | NO | NO | NO | NO |
| Emergency Kits | NO | NO | NO | NO |
| Electrical Class | Class II | Class II | Class II | Class II |
| Ingress Protection(IP Rating) | IP20 | IP20 | IP20 | IP20 |
| Impact Resistance(IK Rating) | N/ A | N/ A | N/ A | N/ A |
| Product Finishing | White | White | White | White |
| Optics Material | PP | PP | PP | PP |
| Housing Material | ABS | ABS | ABS | ABS |
| Lifetime (hr) | 30,000h | 30,000h | 30,000h | 30,000h |
| Glow wire test (°C) | 650°C | 650°C | 650°C | 650°C |
| Operating Temp.(°C) | -20°C~40°C | -20°C~40°C | -20°C~40°C | -20°C~40°C |
| Storage Temp.(°C) | -20°C~65°C | -20°C~65°C | -20°C~65°C | -20°C~65°C |
| Installation | Surface Mounting | Surface Mounting | Surface Mounting | Surface Mounting |
