NCL114R

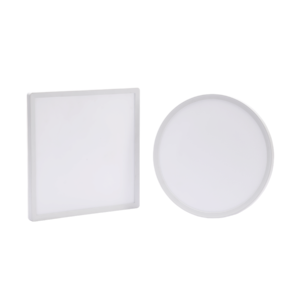

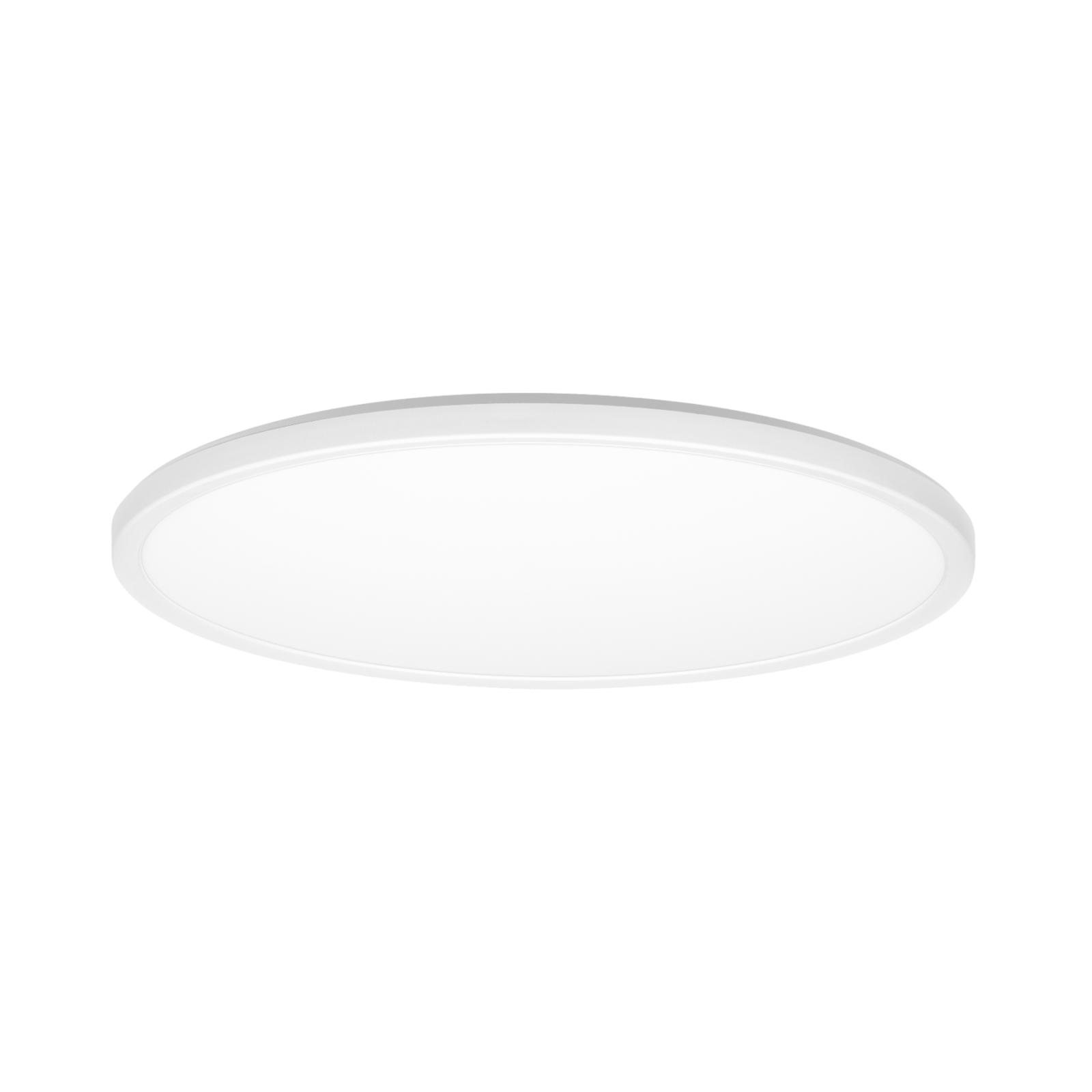

Ultra-slim LED ceiling light with selectable CCT & wattage. Square version available: NCL114S.
Edge-lit ceiling light with ultra-thin shape, indirect backlight available

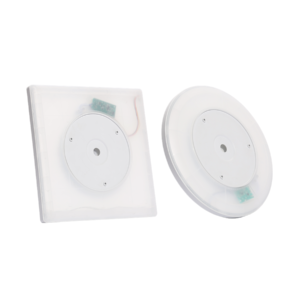

Speed-fit bracket and push-fit terminal for easy installation
CCT and power switch option available
RGB and microwave sensor version for option
NCL114R LED ceiling light specification icons — voltage, lifetime, warranty and IP rating
Send Inquiry
Code NCL114R-12W NCL114R-18W NCL114R-24W NCL114R-12W-54 NCL114R-18W-54 NCL114R-24W-54
Dimension(mm) Φ225x28mm Φ292x28mm Φ420x28mm Φ225x34mm Φ300x34mm Φ420x34mm
Watt(W) 12W 18W 24W 12W 18W 24W
Rated Input Voltage AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V
Light Source 2835 2835 2835 2835 2835 2835
SDCM <6 <6 <6 <6 <6 <6
CCT(K) 3000K/ 4000K/ 6000K/ RGB 3000K/ 4000K/ 6000K/ RGB 3000K/ 4000K/ 6000K/ RGB 3000K/ 4000K/ 6000K/ RGB 3000K/ 4000K/ 6000K/ RGB 3000K/ 4000K/ 6000K/ RGB
CCT Selection DIP Switch YES YES YES YES YES YES
Luminous Flux (lm) 1080 1620 2160 1080 1620 2160
CRI 80 80 80 80 80 80
Beam Angle (°) 110° 110° 110° 110° 110° 110°
LED Driver Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in
Dimming Option NO NO NO NO NO NO
Sensor YES YES YES YES YES YES
Emergency Kits NO NO NO NO NO NO
Electrical Class Class II Class II Class II Class II Class II Class II
Ingress Protection(IP Rating) IP20 IP20 IP20 IP54 IP54 IP54
Impact Resistance(IK Rating) N/ A N/ A N/ A N/ A N/ A N/ A
Product Finishing White White White White White White
Optics Material PP PP PP PP PP PP
Housing Material PP PP PP PP PP PP
Lifetime (hr) 30,000h 30,000h 30,000h 30,000h 30,000h 30,000h
Glow wire test (°C) 650°C 650°C 650°C 650°C 650°C 650°C
Operating Temp.(°C) -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C
Storage Temp.(°C) -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C
Installation Surface Mounting Surface Mounting Surface Mounting Surface Mounting Surface Mounting Surface Mounting
