NCL113S

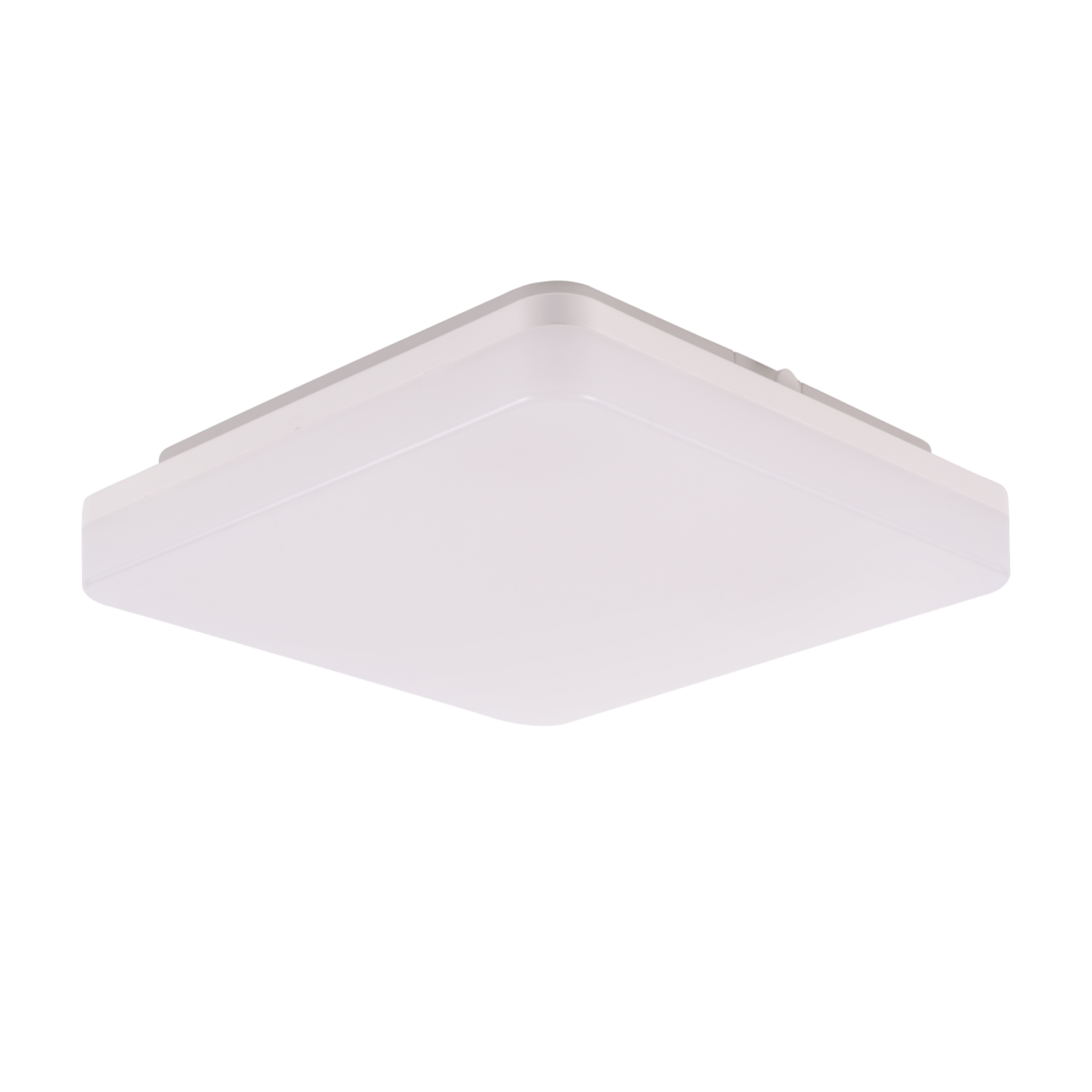

Frameless LED ceiling light with uniform light output. Round version available: NCL113R.

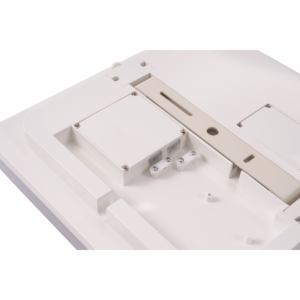

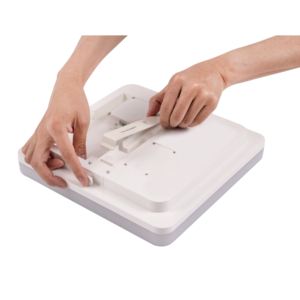

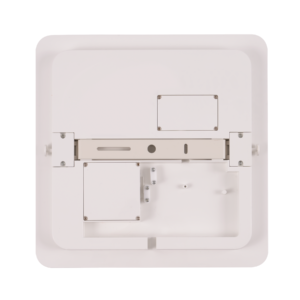

Speed-fit bracket and junction box for easy installation
CCT & power switch option available
Round & square shapes available
Sensor and emergency model available
| Code | NCL113S-15W | NCL113S-18W | NCL113S-24W |
|---|---|---|---|
| Dimension(mm) | 220x220x50mm | 280x280x50mm | 330x330x50mm |
| Watt(W) | 15W | 18W | 24W |
| Rated Input Voltage | AC220-240V | AC220-240V | AC220-240V |
| Light Source | 2835 | 2835 | 2835 |
| SDCM | <6 | <6 | <6 |
| CCT(K) | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K |
| CCT Selection DIP Switch | YES | YES | YES |
| Luminous Flux (lm) | 1200 | 1440 | 1920 |
| CRI | 80 | 80 | 80 |
| Beam Angle (°) | 120° | 120° | 120° |
| LED Driver | Driver built-in | Driver built-in | Driver built-in |
| Dimming Option | NO | NO | NO |
| Sensor | YES | YES | YES |
| Emergency Kits | YES | YES | YES |
| Electrical Class | Class II | Class II | Class II |
| Ingress Protection(IP Rating) | IP54 | IP54 | IP54 |
| Impact Resistance(IK Rating) | IK06 | IK06 | IK06 |
| Product Finishing | White | White | White |
| Optics Material | PC | PC | PC |
| Housing Material | PC | PC | PC |
| Lifetime (hr) | 25,000h | 25,000h | 25,000h |
| Glow wire test (°C) | 650°C | 650°C | 650°C |
| Operating Temp.(°C) | -20°C~40°C | -20°C~40°C | -20°C~40°C |
| Storage Temp.(°C) | -20°C~65°C | -20°C~65°C | -20°C~65°C |
| Installation | Surface Mounting | Surface Mounting | Surface Mounting |
