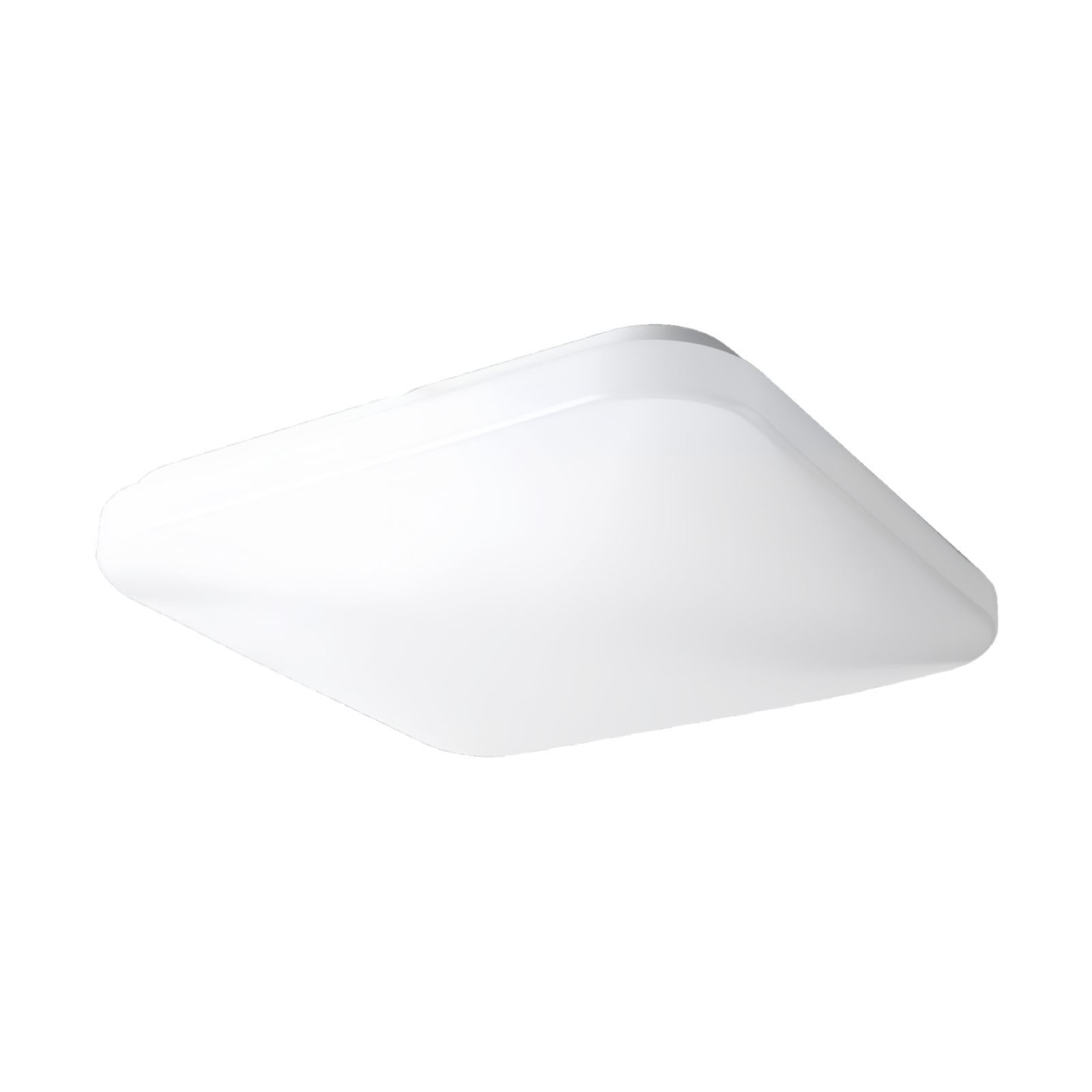

NCL112S
Classic LED ceiling light with remote-control. Round version also available: NCL112R
Classic ceiling light with slim and clean shape
CCT switch option available
Remote control version available
PIR sensor model available
| Code | NCL112S-12W | NCL112S-18W | NCL112S-24W | NCL112S-36W | NCL112S-50W | NCL112S-60W | NCL112S-100W |
|---|---|---|---|---|---|---|---|
| Dimension(mm) | 280x280x45mm | 330x330x60mm | 380x380x60mm | 430x430x60mm | 530x530x70mm | 540x540x70mm | 800x800x65mm |
| Watt(W) | 12W | 18W | 24W | 36W | 50W | 60W | 100W |
| Rated Input Voltage | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
| Light Source | 2835 | 2835 | 2835 | 2835 | 2835 | 2835 | 2835 |
| SDCM | <6 | <6 | <6 | <6 | <6 | <6 | <6 |
| CCT(K) | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K |
| CCT Selection DIP Switch | NO | NO | NO | NO | NO | NO | NO |
| Luminous Flux (lm) | 840 | 1260 | 1680 | 2520 | 3500 | 4200 | 6500 |
| CRI | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Beam Angle (°) | 120° | 120° | 120° | 120° | 120° | 120° | 120° |
| LED Driver | Driver built-in | Driver built-in | Driver built-in | Driver built-in | Driver built-in | Driver built-in | Driver built-in |
| Dimming Option | YES(Remote control） | YES(Remote control） | YES(Remote control） | YES(Remote control） | YES(Remote control） | YES(Remote control） | YES(Remote control） |
| Sensor | NO | NO | NO | NO | NO | NO | NO |
| Emergency Kits | NO | NO | NO | NO | NO | NO | NO |
| Electrical Class | Class I | Class I | Class I | Class I | Class I | Class I | Class I |
| Ingress Protection(IP Rating) | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 |
| Impact Resistance(IK Rating) | N/ A | N/ A | N/ A | N/ A | N/ A | N/ A | N/ A |
| Product Finishing | White | White | White | White | White | White | White |
| Optics Material | PVC | PVC | PVC | PVC | PVC | PVC | PVC |
| Housing Material | Iron | Iron | Iron | Iron | Iron | Iron | Iron |
| Lifetime (hr) | 25,000h | 25,000h | 25,000h | 25,000h | 25,000h | 25,000h | 25,000h |
| Glow wire test (°C) | 650°C | 650°C | 650°C | 650°C | 650°C | 650°C | 650°C |
| Operating Temp.(°C) | -20°C~40°C | -20°C~40°C | -20°C~40°C | -20°C~40°C | -20°C~40°C | -20°C~40°C | -20°C~40°C |
| Storage Temp.(°C) | -20°C~65°C | -20°C~65°C | -20°C~65°C | -20°C~65°C | -20°C~65°C | -20°C~65°C | -20°C~65°C |
| Installation | Surface Mounting | Surface Mounting | Surface Mounting | Surface Mounting | Surface Mounting | Surface Mounting | Surface Mounting |
