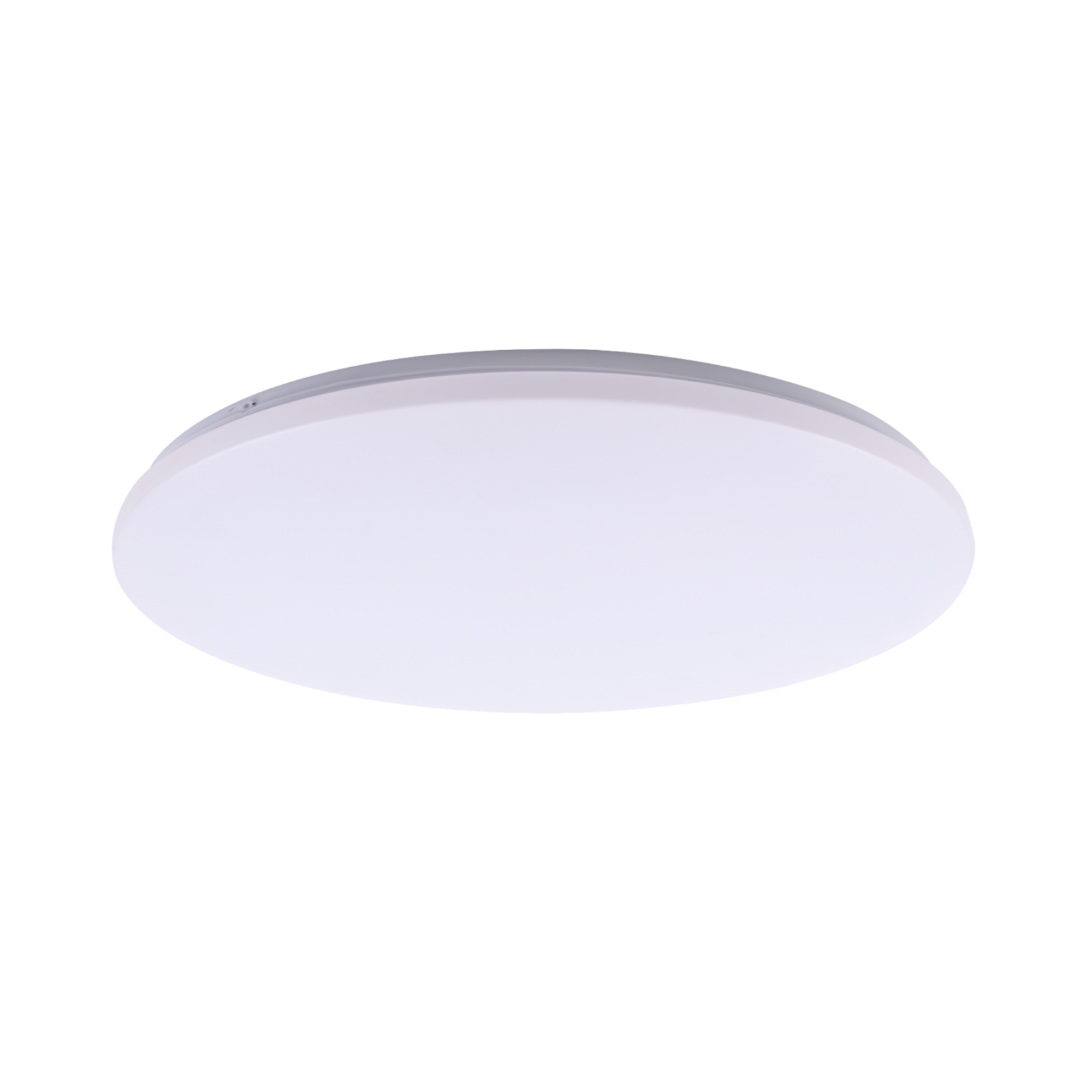

NCL112R

Classic LED ceiling light with remote-control and PIR sensor options. Square version also available :NCL112S.
Classic ceiling light with slim and clean shape
CCT switch option available
Remote control version available
PIR sensor model available
NCL112R LED ceiling light specification icons — voltage, lifetime, warranty and IP rating
Send Inquiry
Code NCL112R-12W-S NCL112R-18W-S NCL112R-24W-S NCL112R-12W NCL112R-18W NCL112R-24W NCL112R-36W NCL112R-50W NCL112R-60W NCL112R-100W
Dimension(mm) Φ250x60mm Φ320x60mm Φ340x60mm Φ250x45mm Φ320x50mm Φ370x60mm Φ480x60mm Φ540x70mm Φ560x70mm Φ760x65mm
Watt(W) 12W 18W 24W 12W 18W 24W 36W 50W 60W 100W
Rated Input Voltage AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V
Light Source 2835 2835 2835 2835 2835 2835 2835 2835 2835 2835
SDCM <6 <6 <6 <6 <6 <6 <6 <6 <6 <6
CCT(K) 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K
CCT Selection DIP Switch YES YES YES NO NO NO NO NO NO NO
Luminous Flux (lm) 840 1260 1920 840 1260 1680 2520 3500 4200 6500
CRI 80 80 80 80 80 80 80 80 80 80
Beam Angle (°) 120° 120° 120° 120° 120° 120° 120° 120° 120° 120°
LED Driver Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in
Dimming Option NO NO NO YES（Remote control) YES（Remote control) YES（Remote control) YES（Remote control) YES（Remote control) YES（Remote control) YES（Remote control)
Sensor YES YES YES NO NO NO NO NO NO NO
Emergency Kits NO NO NO NO NO NO NO NO NO NO
Electrical Class Class I Class I Class I Class I Class I Class I Class I Class I Class I Class I
Ingress Protection(IP Rating) IP20 IP20 IP20 IP20 IP20 IP20 IP20 IP20 IP20 IP20
Impact Resistance(IK Rating) N/ A N/ A N/ A N/ A N/ A N/ A N/ A N/ A N/ A N/ A
Product Finishing White White White White White White White White White White
Optics Material PVC PVC PVC PVC PVC PVC PVC PVC PVC PVC
Housing Material Iron Iron Iron Iron Iron Iron Iron Iron Iron Iron
Lifetime (hr) 25,000h 25,000h 25,000h 25,000h 25,000h 25,000h 25,000h 25,000h 25,000h 25,000h
Glow wire test (°C) 650°C 650°C 650°C 650°C 650°C 650°C 650°C 650°C 650°C 650°C
Operating Temp.(°C) -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C
Storage Temp.(°C) -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C
Installation Surface Mounting Surface Mounting Surface Mounting Surface Mounting Surface Mounting Surface Mounting Surface Mounting Surface Mounting Surface Mounting Surface Mounting
