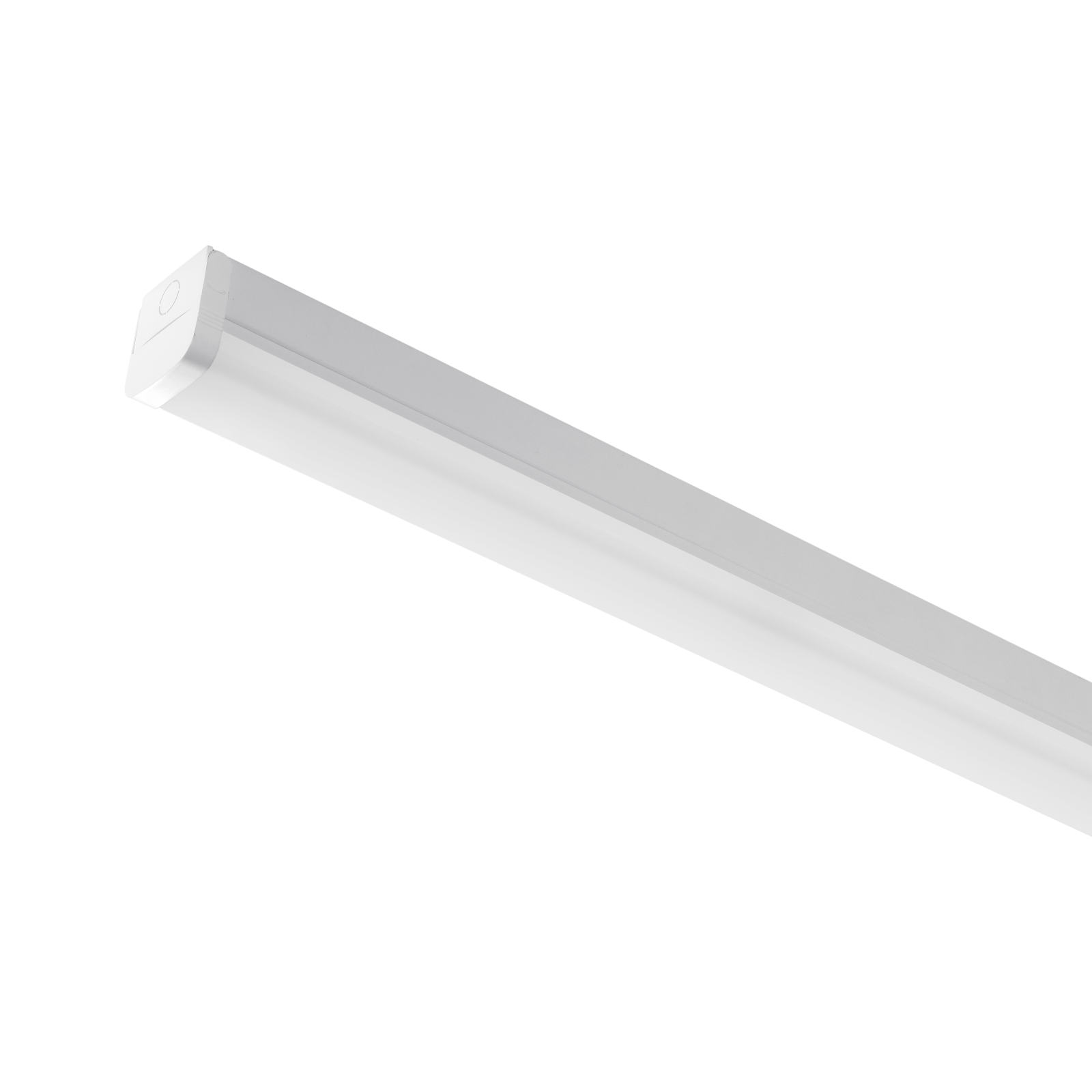

NBT116

IP20 Batten, Two Body Size Single & Twin, CCT & Wattage Selectable Batten, 2ft~6ft
Two body size with low and high output available, efficacy up to 140lm/W
CCT and power switch option available

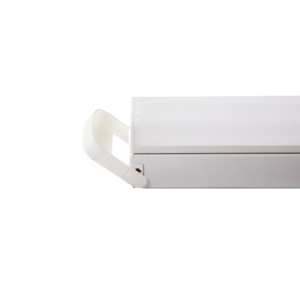

White steel body, opal PC diffuser, and rotate-open end caps
Surface or suspension mount with BESA fixing and central cable entry
Plug-and-play sensor and EM kit for option
NBT116 LED batten specification icons — voltage, lifetime, warranty and IP rating
Send Inquiry
Code NBT116A-2ft NBT116A-4ft NBT116A-5ft NBT116A-6ft NBT116B-2ft NBT116B-4ft NBT116B-5ft NBT116B-6ft
Dimension(mm) 620x84x77 1200x84x77 1500x84x77 1800x84x77 620x65x65 1200x65x65 1500x65x65 1800x65x65
Watt(W) 20W 40W 60W 75W 20W 40W 60W 75W
Rated Input Voltage AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V
Light Source 2835 2835 2835 2835 2835 2835 2835 2835
SDCM <6 <6 <6 <6 <6 <6 <6 <6
CCT(K) 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K
CCT Selection DIP Switch YES YES YES YES YES YES YES YES
Luminous Flux (lm) 2800 5600 8400 10500 2800 5600 8400 10500
CRI 80 80 80 80 80 80 80 80
Beam Angle (°) 120° 120° 120° 120° 120° 120° 120° 120°
LED Driver Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in
Dimming Option YES YES YES YES YES YES YES YES
Sensor YES YES YES YES YES YES YES YES
Emergency Kits YES YES YES YES YES YES YES YES
Electrical Class Class I Class I Class I Class I Class I Class I Class I Class I
Ingress Protection(IP Rating) IP20 IP20 IP20 IP20 IP20 IP20 IP20 IP20
Impact Resistance(IK Rating) IK06 IK06 IK06 IK06 IK06 IK06 IK06 IK06
Product Finishing White RAL9006 White RAL9006 White RAL9006 White RAL9006 White RAL9006 White RAL9006 White RAL9006 White RAL9006
Optics Material PC PC PC PC PC PC PC PC
Housing Material Steel Steel Steel Steel Steel Steel Steel Steel
Lifetime (hr) 50,000h 50,000h 50,000h 50,000h 50,000h 50,000h 50,000h 50,000h
Glow wire test (°C) 650°C 650°C 650°C 650°C 650°C 650°C 650°C 650°C
Operating Temp.(°C) -20°C~45°C -20°C~45°C -20°C~45°C -20°C~45°C -20°C~45°C -20°C~45°C -20°C~45°C -20°C~45°C
Storage Temp.(°C) -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C
Installation Suspended mounting and surface mounting, BESA available Suspended mounting and surface mounting, BESA available Suspended mounting and surface mounting, BESA available Suspended mounting and surface mounting, BESA available Suspended mounting and surface mounting, BESA available Suspended mounting and surface mounting, BESA available Suspended mounting and surface mounting, BESA available Suspended mounting and surface mounting, BESA available
