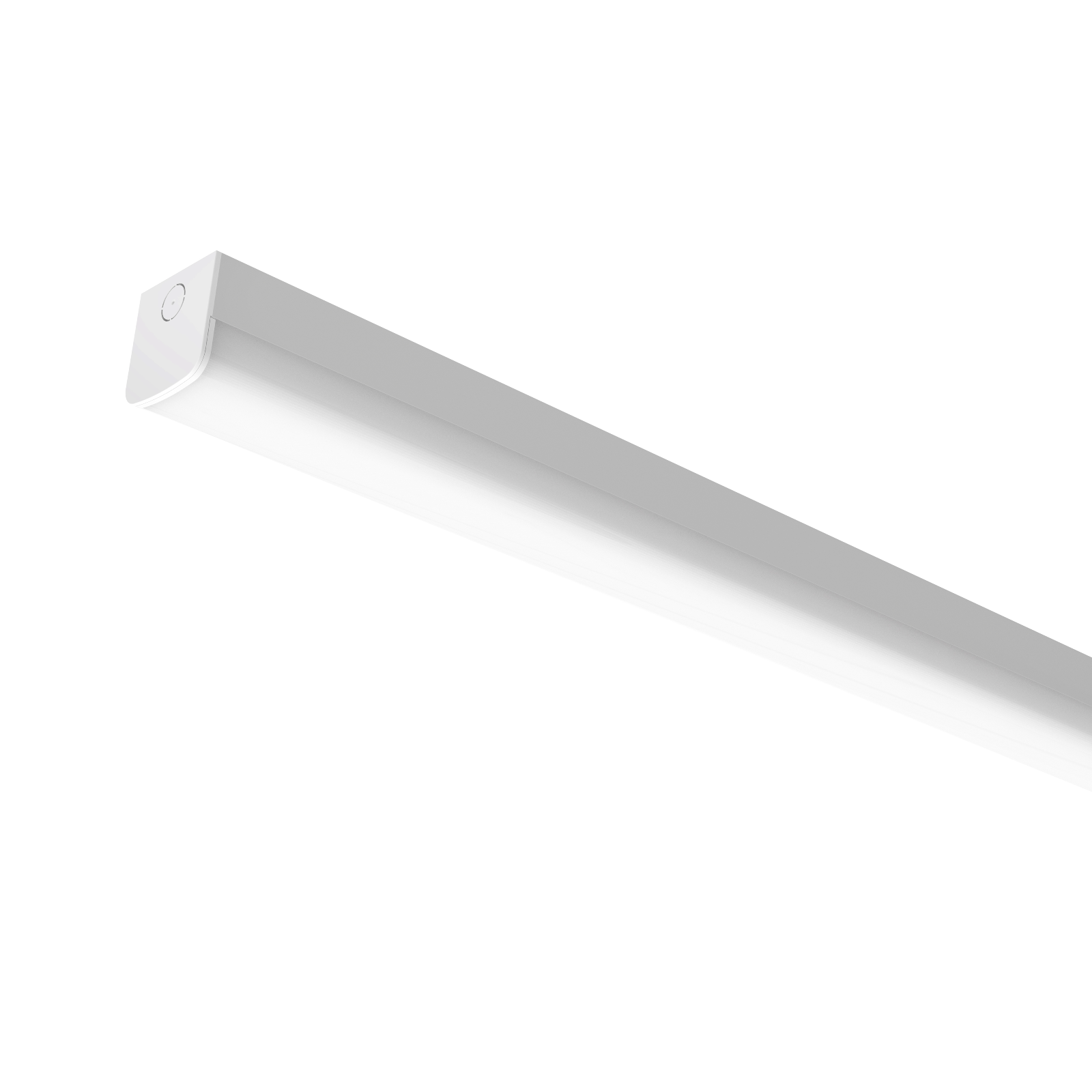

NBT111B
IP20 Batten, Ultra-narrow end cap design, CCT & Wattage Selectable Batten, 2ft~6ft
High-brightness LED chips, efficacy up to 140lm/W
CCT and power switch option available
White steel body, opal PC diffuser, no dark zones in linear connection
Surface or suspension mount with BESA fixing and central cable entry
Plug-and-play sensor and EM kit for option
| Code | NBT111B-2ft | NBT111B-4ft | NBT111B-5ft | NBT111B-6ft |
|---|---|---|---|---|
| Dimension(mm) | 600x65x67 | 1200x65x67 | 1500x65x67 | 1800x65x67 |
| Watt(W) | 20W | 40W | 50W | 70W |
| Rated Input Voltage | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
| Light Source | 2835 | 2835 | 2835 | 2835 |
| SDCM | <6 | <6 | <6 | <6 |
| CCT(K) | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K |
| CCT Selection DIP Switch | YES | YES | YES | YES |
| Luminous Flux (lm) | 2800 | 5600 | 7000 | 9800 |
| CRI | 80 | 80 | 80 | 80 |
| Beam Angle (°) | 120° | 120° | 120° | 120° |
| LED Driver | Driver built-in | Driver built-in | Driver built-in | Driver built-in |
| Dimming Option | YES | YES | YES | YES |
| Sensor | YES | YES | YES | YES |
| Emergency Kits | YES | YES | YES | YES |
| Electrical Class | Class I | Class I | Class I | Class I |
| Ingress Protection(IP Rating) | IP20 | IP20 | IP20 | IP20 |
| Impact Resistance(IK Rating) | IK06 | IK06 | IK06 | IK06 |
| Product Finishing | White RAL9006 | White RAL9006 | White RAL9006 | White RAL9006 |
| Optics Material | PC | PC | PC | PC |
| Housing Material | Steel | Steel | Steel | Steel |
| Lifetime (hr) | 50,000h | 50,000h | 50,000h | 50,000h |
| Glow wire test (°C) | 650°C | 650°C | 650°C | 650°C |
| Operating Temp.(°C) | -20°C~45°C | -20°C~45°C | -20°C~45°C | -20°C~45°C |
| Storage Temp.(°C) | -20°C~65°C | -20°C~65°C | -20°C~65°C | -20°C~65°C |
| Installation | Suspended mounting and surface mounting, BESA available | Suspended mounting and surface mounting, BESA available | Suspended mounting and surface mounting, BESA available | Suspended mounting and surface mounting, BESA available |
