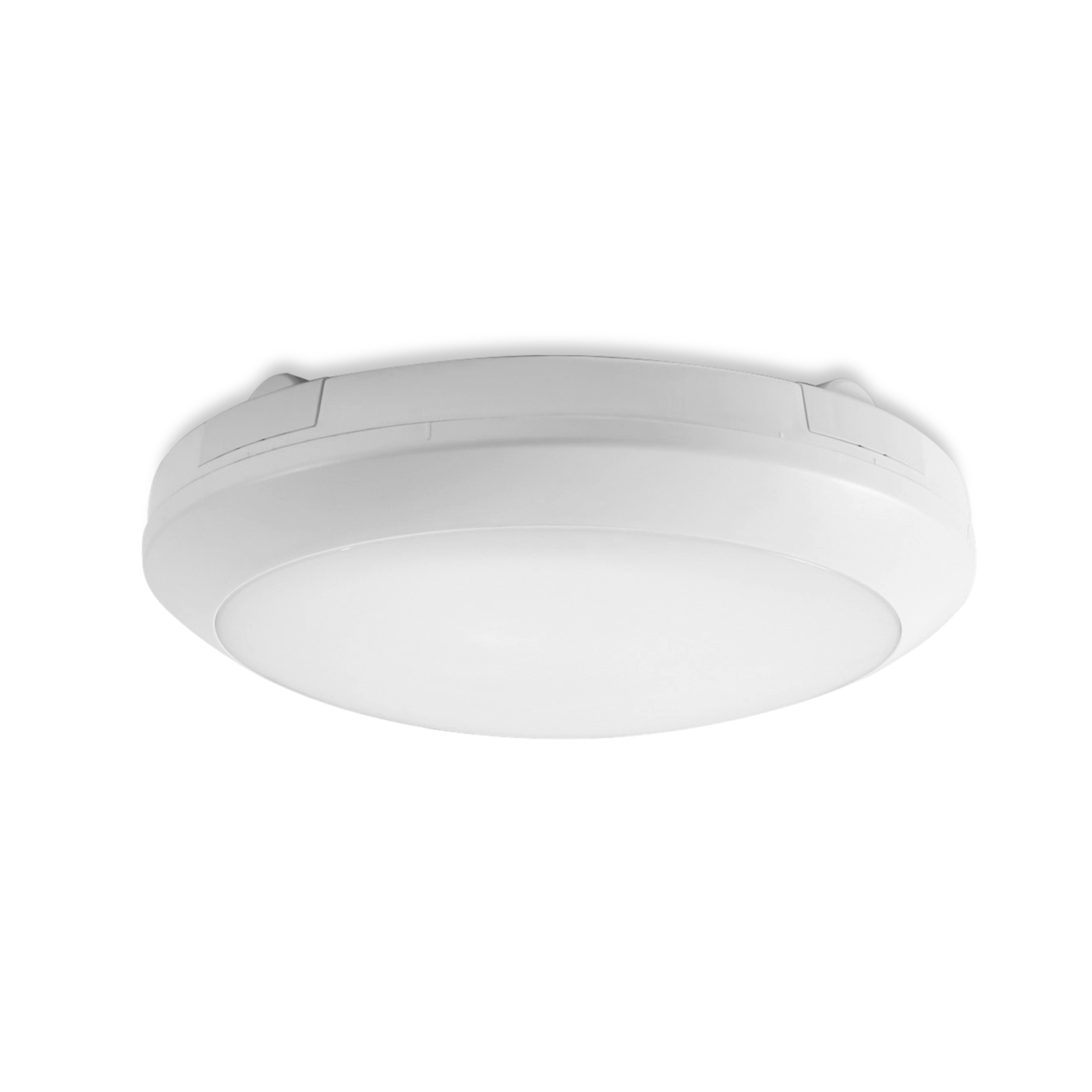

NBH121

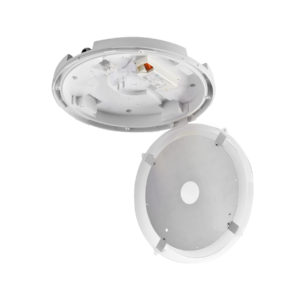

Highly durable IP65 & IK10-rated, wattage & CCT selectable, plug-and-play LED bulkhead. Integral LED gear tray and diffuser, held in place for easy installation.
CCT and power switch option available
High impact polycarbonate body, IK10 (impact resistance)
4 side and 1 rear conduit entry points
Plug-and-play sensor and EM kit for option
NBH121 LED bulkhead specification icons — voltage, lifetime, warranty and IP rating
Send Inquiry
Code NBH121A-15W NBH121A-20W NBH121A-18W NBH121A-24W NBH121B-25W
Dimension(mm) Φ308x88mm Φ308x88mm Φ350x106mm Φ350x106mm Φ400x135mm
Watt(W) 15W 20W 18W 24W 25W
Rated Input Voltage AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V
Light Source 2835 2835 2835 2835 2835
SDCM <6 <6 <6 <6 <6
CCT(K) 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K 3000K/ 4000K/ 6000K
CCT Selection DIP Switch YES YES YES YES YES
Luminous Flux (lm) 1200 1600 1440 1920 2000
CRI 80 80 80 80 80
Beam Angle (°) 110° 110° 110° 110° 110°
LED Driver Driver built-in Driver built-in Driver built-in Driver built-in Driver built-in
Dimming Option NO NO NO NO NO
Sensor YES YES YES YES YES
Emergency Kits YES YES YES YES YES
Electrical Class Class II Class II Class II Class II Class II
Ingress Protection(IP Rating) IP65 IP65 IP65 IP65 IP65
Impact Resistance(IK Rating) IK10 IK10 IK10 IK10 IK10
Product Finishing White White White White White
Optics Material PC PC PC PC PC
Housing Material PC PC PC PC PC
Lifetime (hr) 50,000h 50,000h 50,000h 50,000h 50,000h
Glow wire test (°C) 650°C 650°C 650°C 650°C 650°C
Operating Temp.(°C) -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C
Storage Temp.(°C) -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C -20°C~65°C
Installation Surface Mounting Surface Mounting Surface Mounting Surface Mounting Surface Mounting
