NBH119R

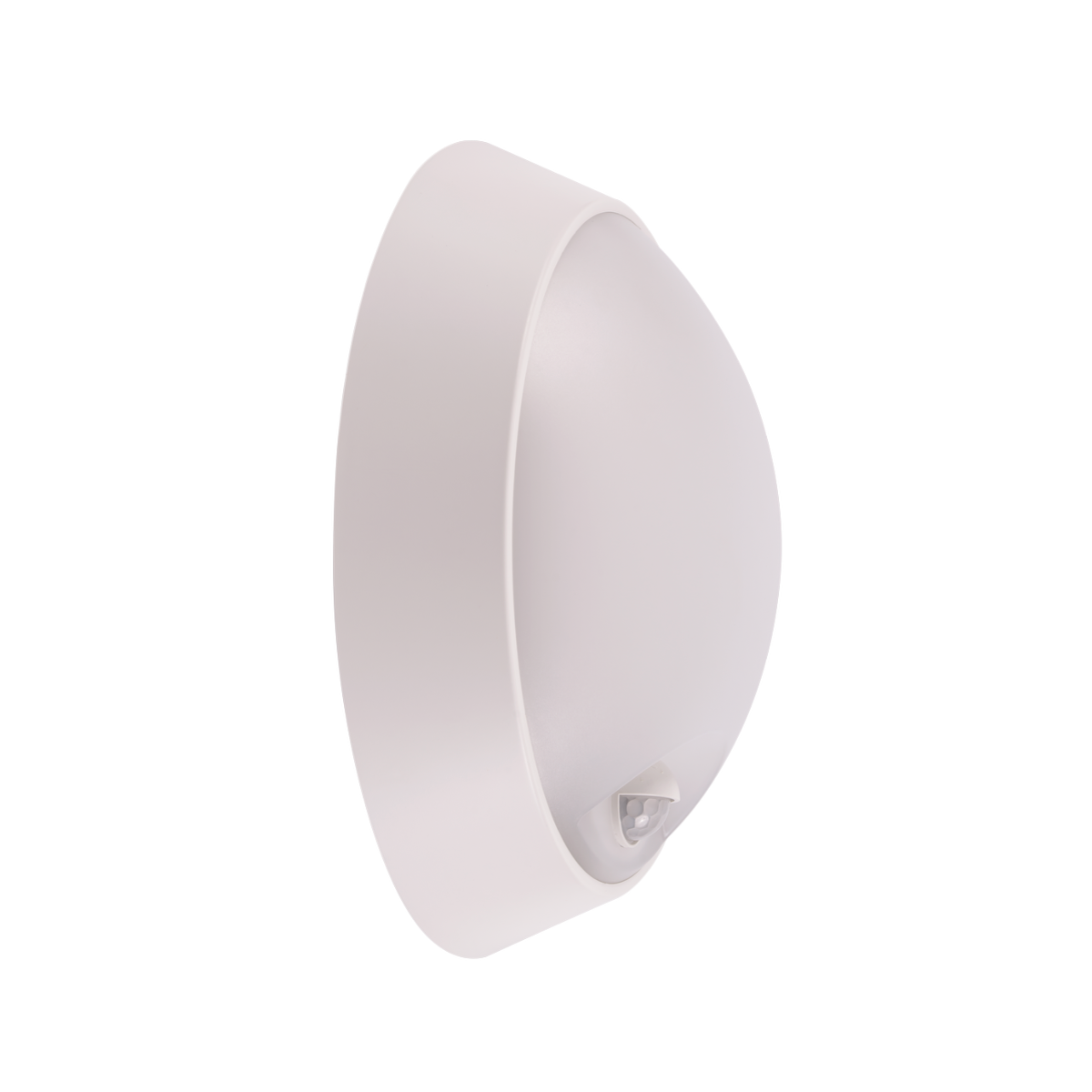

Classic round LED bulkhead with CCT & wattage selectable.
CCT and power switch option available
High impact body, IK10 (impact resistance)

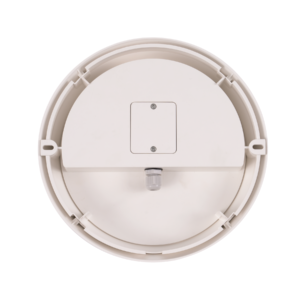

Junction box for quick wiring

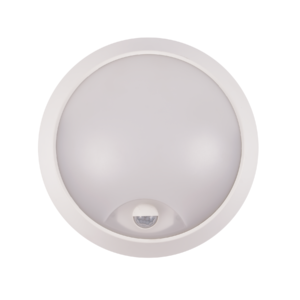

Adjustable PIR sensor
| Code | NBH119R-15W | NBH119R-15W-S | NBH119R-20W | NBH119R-20W-S |
|---|---|---|---|---|
| Dimension(mm) | Φ180x60mm | Φ180x60mm | Φ220x82mm | Φ220x82mm |
| Watt(W) | 15W | 15W | 20W | 20W |
| Rated Input Voltage | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
| Light Source | 2835 | 2835 | 2835 | 2835 |
| SDCM | <6 | <6 | <6 | <6 |
| CCT(K) | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K |
| CCT Selection DIP Switch | YES | YES | YES | YES |
| Luminous Flux (lm) | 1500 | 1500 | 2000 | 2000 |
| CRI | 80 | 80 | 80 | 80 |
| Beam Angle (°) | 110° | 110° | 110° | 110° |
| LED Driver | Driver built-in | Driver built-in | Driver built-in | Driver built-in |
| Dimming Option | NO | NO | NO | NO |
| Sensor | YES | YES | YES | YES |
| Emergency Kits | NO | NO | NO | NO |
| Electrical Class | Class II | Class II | Class II | Class II |
| Ingress Protection(IP Rating) | IP65 | IP54 | IP65 | IP54 |
| Impact Resistance(IK Rating) | IK10 | IK10 | IK10 | IK10 |
| Product Finishing | White/ Black | White/ Black | White/ Black | White/ Black |
| Optics Material | PC | PC | PC | PC |
| Housing Material | ABS | ABS | ABS | ABS |
| Lifetime (hr) | 25,000h | 25,000h | 25,000h | 25,000h |
| Glow wire test (°C) | 650°C | 650°C | 650°C | 650°C |
| Operating Temp.(°C) | -20°C~40°C | -20°C~40°C | -20°C~40°C | -20°C~40°C |
| Storage Temp.(°C) | -20°C~65°C | -20°C~65°C | -20°C~65°C | -20°C~65°C |
| Installation | Surface Mounting | Surface Mounting | Surface Mounting | Surface Mounting |
