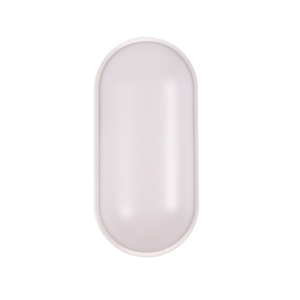

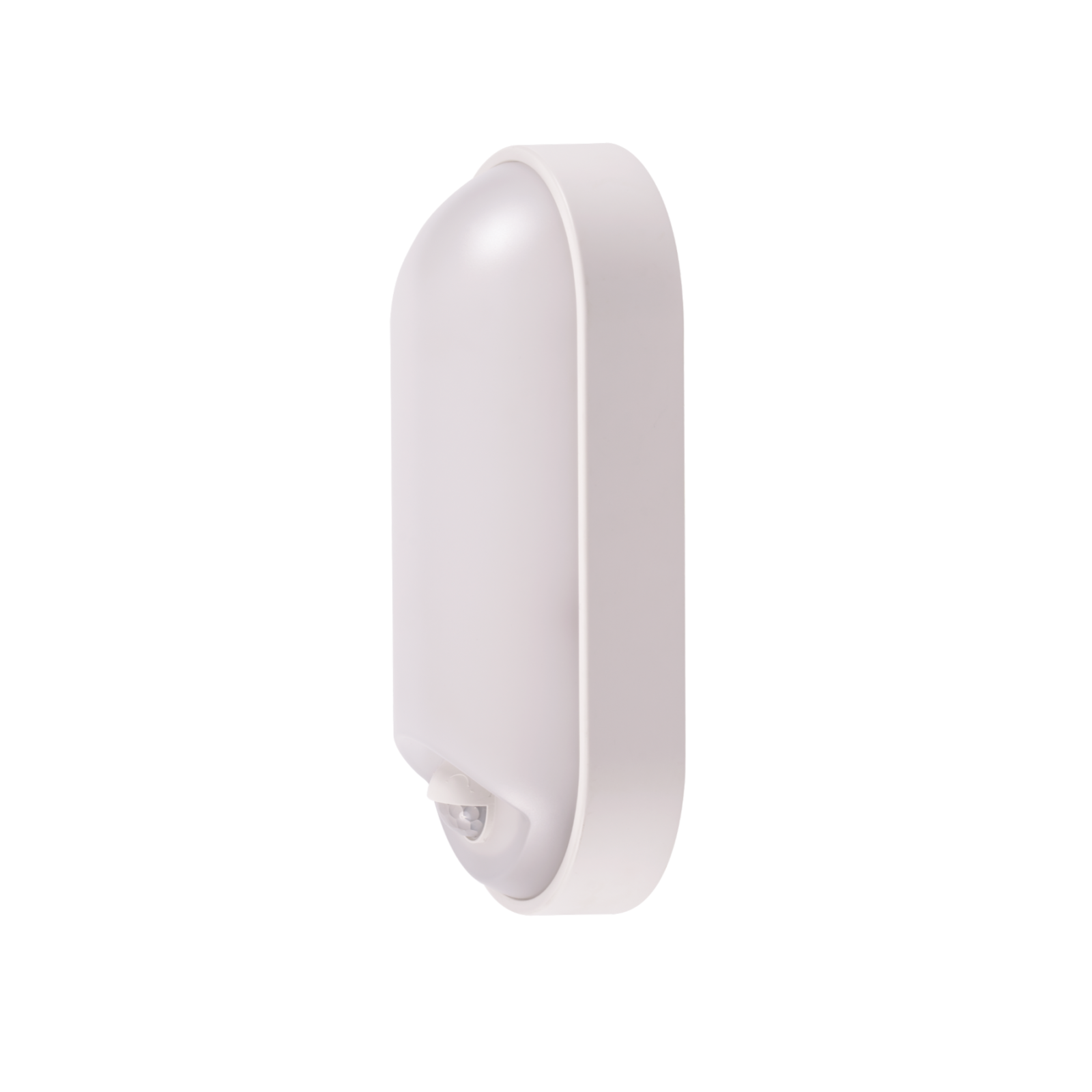

NBH119O
Classic oval LED bulkhead with selectable CCT & wattage.
CCT and power switch option available
High impact body, IK10 (impact resistance)

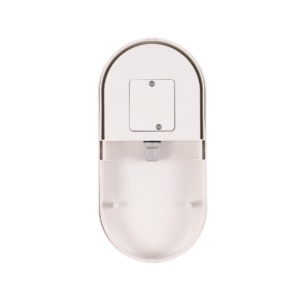

Junction box for quick wiring

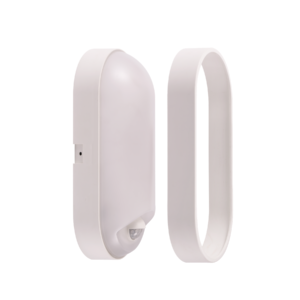

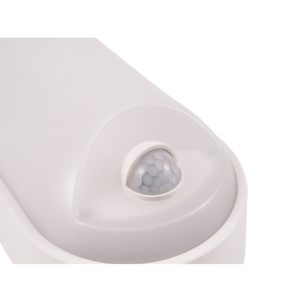

Adjustable PIR sensor
| Code | NBH119O-15W | NBH119O-15W-S |
|---|---|---|
| Dimension(mm) | 220x106x60mm | 220x106x60mm |
| Watt(W) | 15W | 15W |
| Rated Input Voltage | AC220-240V | AC220-240V |
| Light Source | 2835 | 2835 |
| SDCM | <6 | <6 |
| CCT(K) | 3000K/ 4000K/ 6000K | 3000K/ 4000K/ 6000K |
| CCT Selection DIP Switch | YES | YES |
| Luminous Flux (lm) | 1500 | 1500 |
| CRI | 80 | 80 |
| Beam Angle (°) | 110° | 110° |
| LED Driver | Driver built-in | Driver built-in |
| Dimming Option | NO | NO |
| Sensor | YES | YES |
| Emergency Kits | NO | NO |
| Electrical Class | Class II | Class II |
| Ingress Protection(IP Rating) | IP65 | IP54 |
| Impact Resistance(IK Rating) | IK10 | IK10 |
| Product Finishing | White/ Black | White/ Black |
| Optics Material | PC | PC |
| Housing Material | ABS | ABS |
| Lifetime (hr) | 25,000h | 25,000h |
| Glow wire test (°C) | 650°C | 650°C |
| Operating Temp.(°C) | -20°C~40°C | -20°C~40°C |
| Storage Temp.(°C) | -20°C~65°C | -20°C~65°C |
| Installation | Surface Mounting | Surface Mounting |
