NBH116

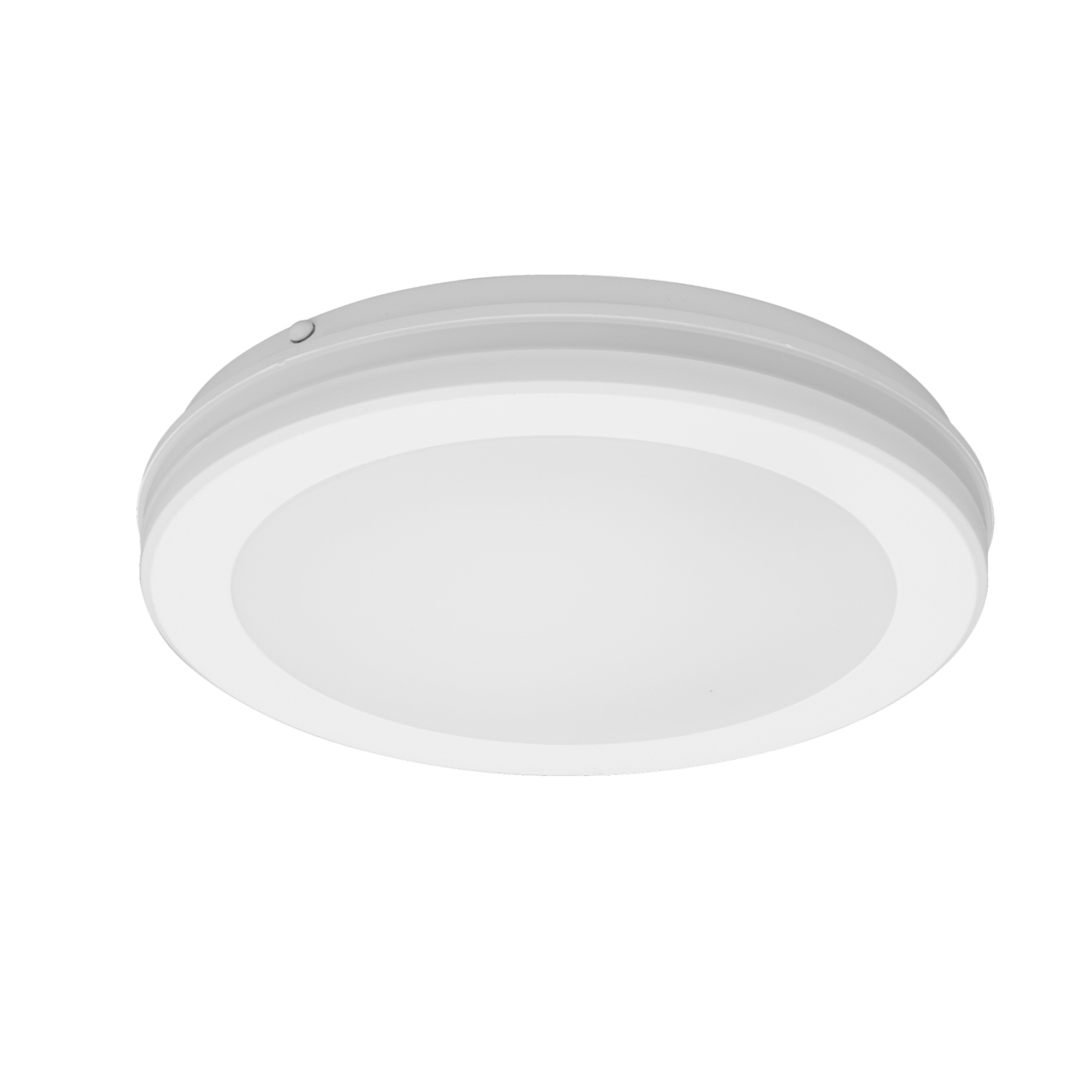

CCT-selectable LED bulkhead with Speed-fit bracket and junction box for easy installation.

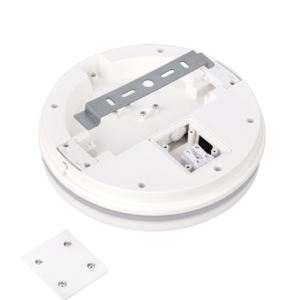

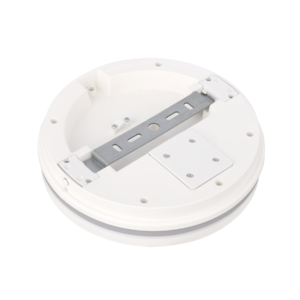

Speed-fit bracket and junction box for easy installation
Speed-fit bracket and junction box for easy installation

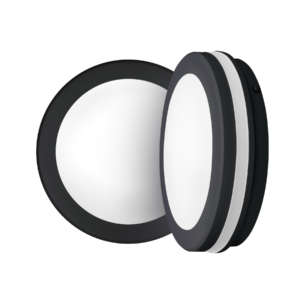

White and black body colour available
| Code | NBH116B-20W | NBH116B-30W | NBH116B-40W |
|---|---|---|---|
| Dimension(mm) | Φ200x55mm | Φ300x55mm | Φ300x55mm |
| Watt(W) | 20W | 30W | 40W |
| Rated Input Voltage | AC220-240V | AC220-240V | AC220-240V |
| Light Source | 2835 | 2835 | 2835 |
| SDCM | <6 | <6 | <6 |
| CCT(K) | 3000K/ 4000K/ 6500K | 3000K/ 4000K/ 6500K | 3000K/ 4000K/ 6500K |
| CCT Selection DIP Switch | YES | YES | YES |
| Luminous Flux (lm) | 1800 | 2700 | 3600 |
| CRI | 80 | 80 | 80 |
| Beam Angle (°) | 110° | 110° | 110° |
| LED Driver | Driver built-in | Driver built-in | Driver built-in |
| Dimming Option | NO | NO | NO |
| Sensor | YES | YES | YES |
| Emergency Kits | NO | NO | NO |
| Electrical Class | Class II | Class II | Class II |
| Ingress Protection(IP Rating) | IP54 | IP54 | IP54 |
| Impact Resistance(IK Rating) | IK04 | IK04 | IK04 |
| Product Finishing | White/ Black | White/ Black | White/ Black |
| Optics Material | PP | PP | PP |
| Housing Material | PP | PP | PP |
| Lifetime (hr) | 30,000h | 30,000h | 30,000h |
| Glow wire test (°C) | 650°C | 650°C | 650°C |
| Operating Temp.(°C) | -20°C~40°C | -20°C~40°C | -20°C~40°C |
| Storage Temp.(°C) | -20°C~65°C | -20°C~65°C | -20°C~65°C |
| Installation | Surface Mounting | Surface Mounting | Surface Mounting |
