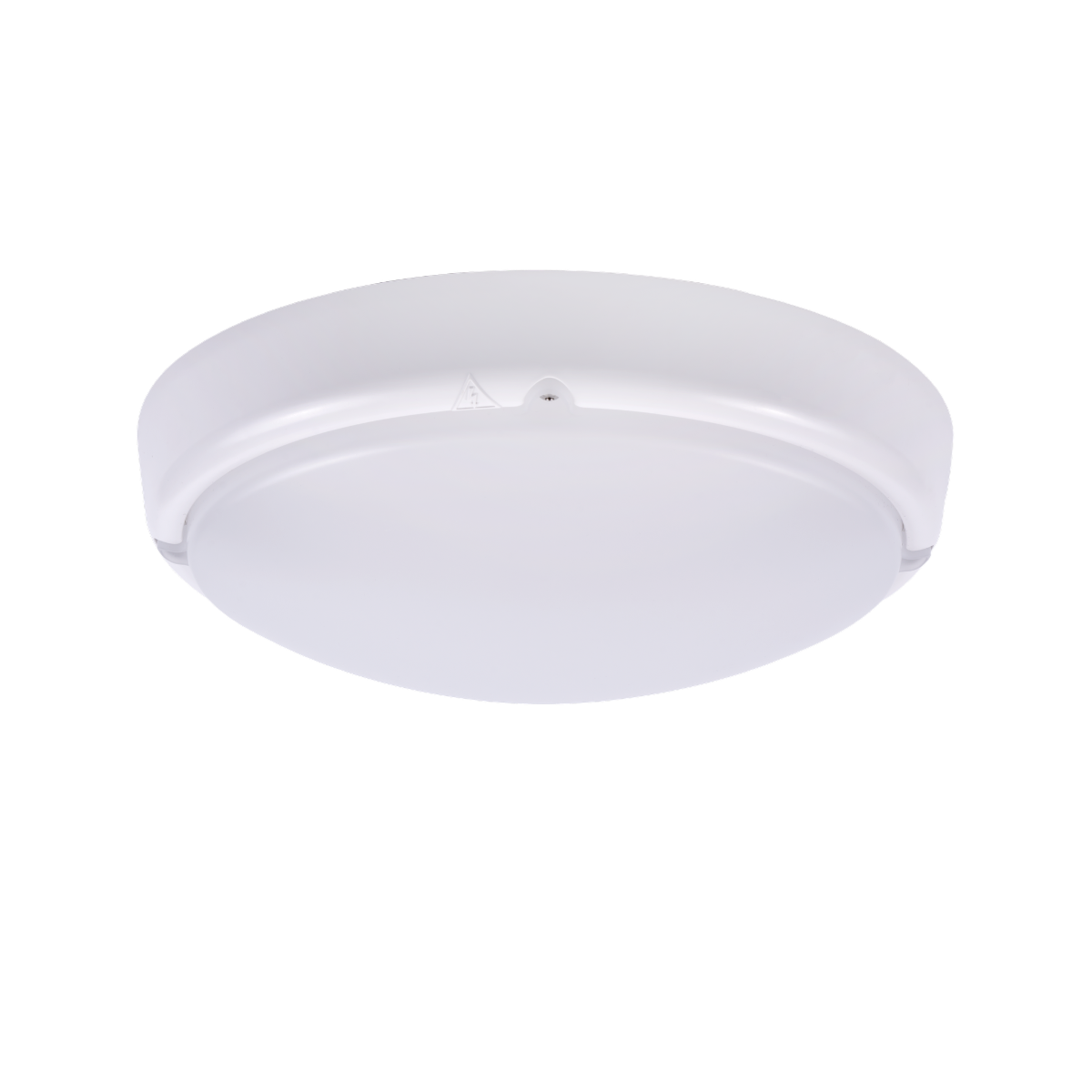

NBH112
IP65, CCT & wattage selectable LED bulkhead with anti-theft screw-fixed cover.
CCT and power switch option available
High impact polycarbonate body, IK10 (impact resistance)
4 side and 1 rear cable entry
Sensor and EM kit for option
| Code | NBH112 |
|---|---|
| Dimension(mm) | Φ320x88mm |
| Watt(W) | 24W/ 20W/ 16W/ 12W |
| Rated Input Voltage | AC220-240V |
| Light Source | 2835 |
| SDCM | <6 |
| CCT(K) | 3000K/ 4000K/ 6500K |

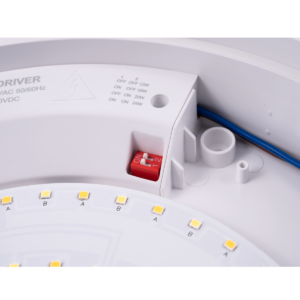

| CCT Selection DIP Switch | YES |
| Luminous Flux (lm) | 2880lm |
| CRI | 80 |
| Beam Angle (°) | 110° |
| LED Driver | Driver built-in |
| Dimming Option | NO |
| Sensor | YES |
| Emergency Kits | YES |
| Electrical Class | Class II |
| Ingress Protection(IP Rating) | IP65 |
| Impact Resistance(IK Rating) | IK10 |
| Product Finishing | White |
| Optics Material | PC |
| Housing Material | PC |
| Lifetime (hr) | 30,000h |
| Glow wire test (°C) | 650°C |
| Operating Temp.(°C) | -20°C~40°C |
| Storage Temp.(°C) | -20°C~65°C |
| Installation | Surface Mounting |
