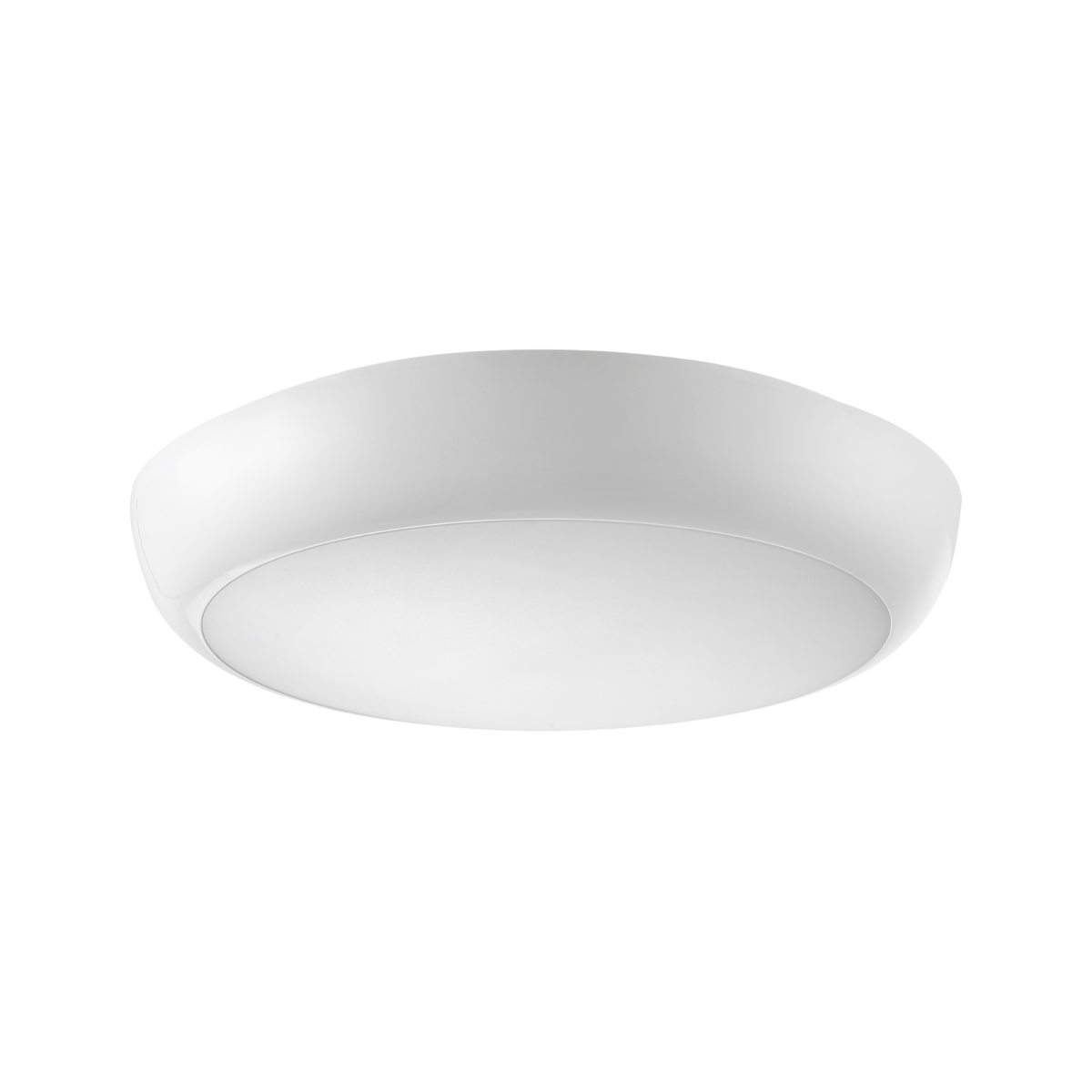

NBH111
Highly durable IP65 & IK10-rated, wattage & CCT selectable, plug-and-play LED bulkhead.

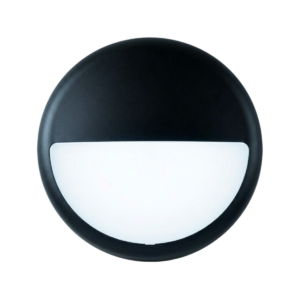

Available with White, Black, Aluminium, and Eyelid diffusers.
High-brightness LED chips, efficacy up to 140lm/W
CCT and power switch option available

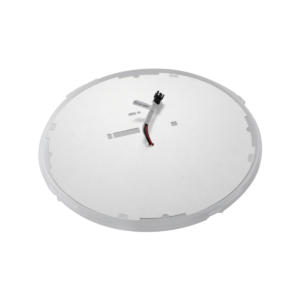

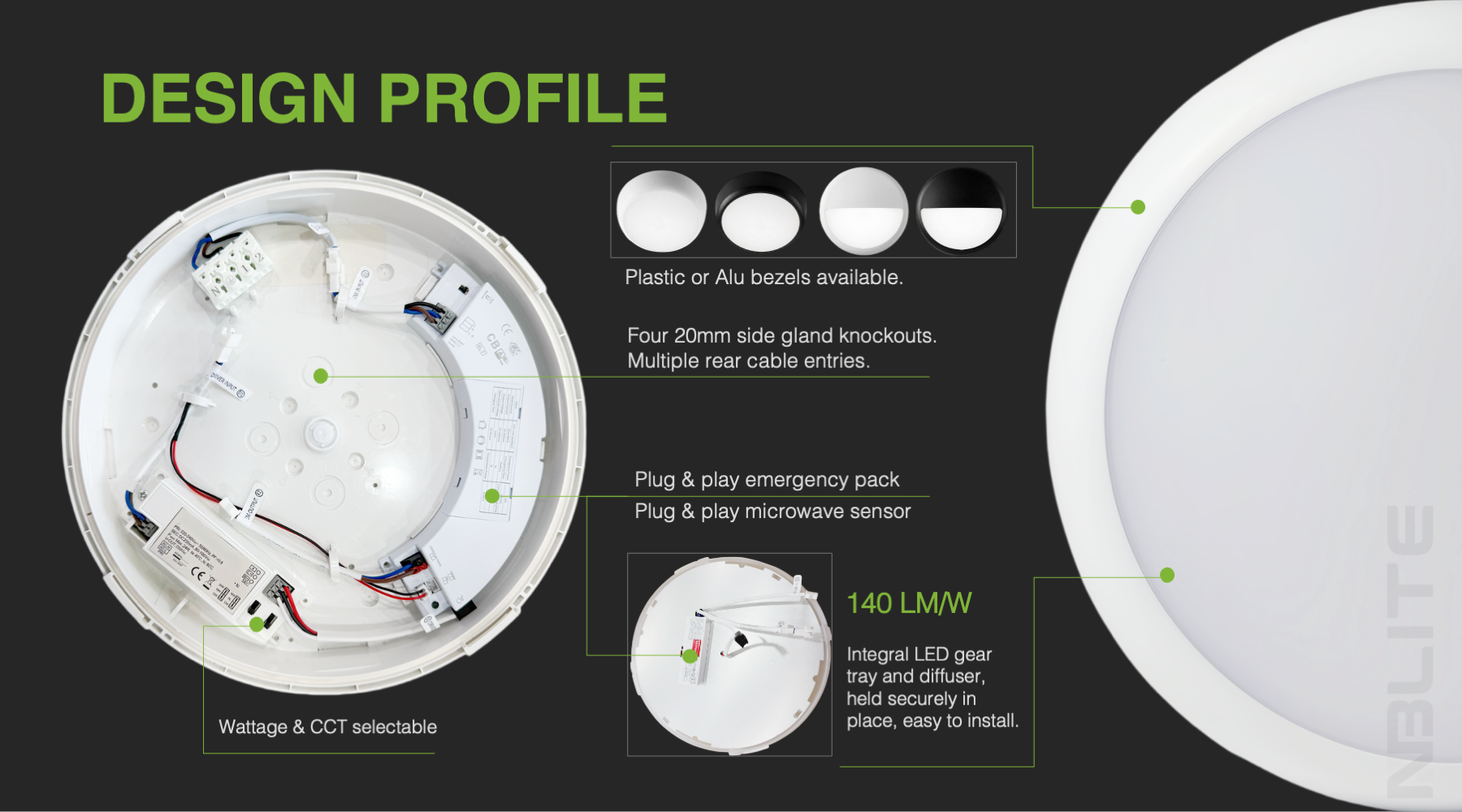

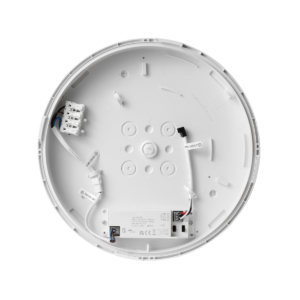

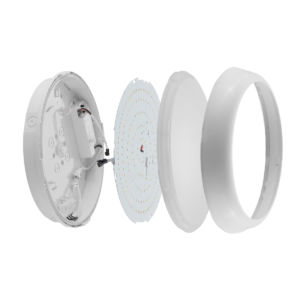

Polycarbonate body and diffuser, 4 side and 1 rear entry points
Plug-and-play sensor and EM kit for option

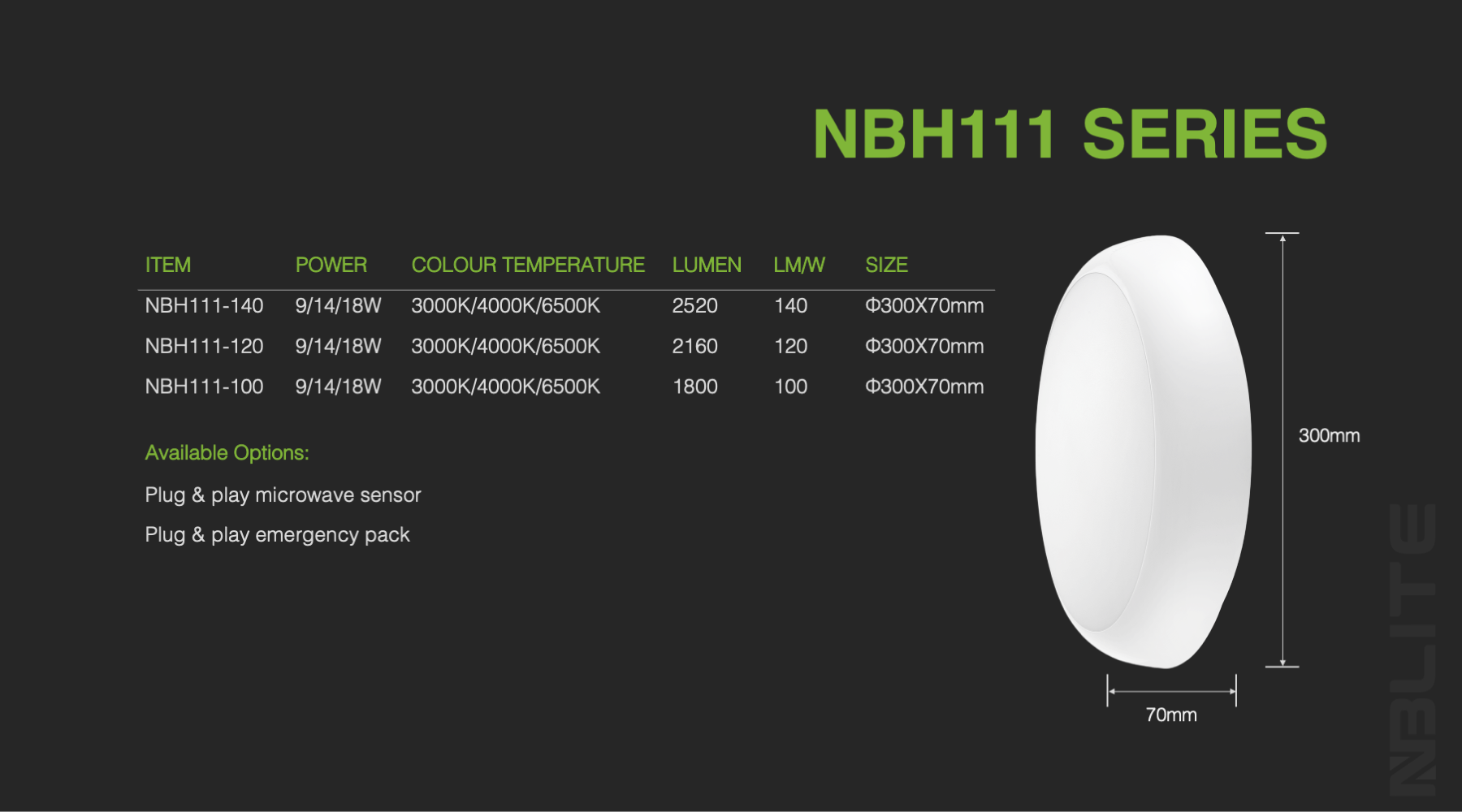

| Code | NBH111-100 | NBH111-120 | NBH111-140 |
|---|---|---|---|
| Dimension(mm) | Φ300x70mm | Φ300x70mm | Φ300x70mm |
| Watt(W) | 18W/ 14W/ 9W | 18W/ 14W/ 9W | 18W/ 14W/ 9W |
| Rated Input Voltage | AC220-240V | AC220-240V | AC220-240V |
| Light Source | 2835 | 2835 | 2835 |
| SDCM | <6 | <6 | <6 |
| CCT(K) | 3000K/ 4000K/ 6500K | 3000K/ 4000K/ 6500K | 3000K/ 4000K/ 6500K |
| CCT Selection DIP Switch | YES | YES | YES |
| Luminous Flux (lm) | 1800 | 2160 | 2520 |
| CRI | 80 | 80 | 80 |
| Beam Angle (°) | 110° | 110° | 110° |
| LED Driver | Driver built-in | Driver built-in | Driver built-in |
| Dimming Option | NO | NO | NO |
| Sensor | YES | YES | YES |
| Emergency Kits | YES | YES | YES |
| Electrical Class | Class II | Class II | Class II |
| Ingress Protection(IP Rating) | IP65 | IP65 | IP65 |
| Impact Resistance(IK Rating) | IK10 | IK10 | IK10 |
| Product Finishing | White/ Black/ Eyelid | White/ Black/ Eyelid | White/ Black/ Eyelid |
| Optics Material | PC | PC | PC |
| Housing Material | PC Base+ABS Bezel | PC Base+ABS Bezel | PC Base+ABS Bezel |
| Lifetime (hr) | 30,000h | 30,000h | 30,000h |
| Glow wire test (°C) | 650°C | 650°C | 650°C |
| Operating Temp.(°C) | -20°C~40°C | -20°C~40°C | -20°C~40°C |
| Storage Temp.(°C) | -20°C~65°C | -20°C~65°C | -20°C~65°C |

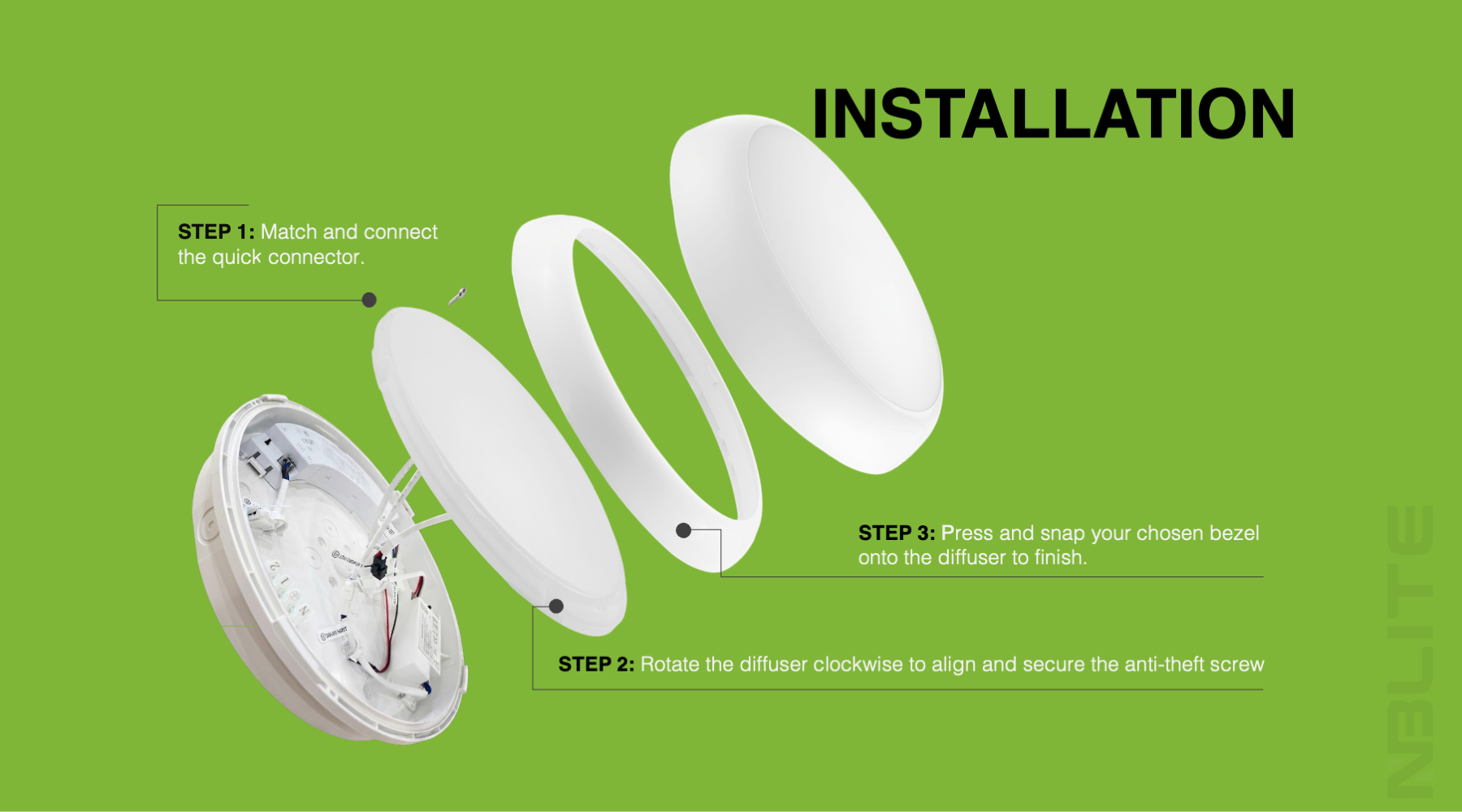

| Installation | Surface Mounting | Surface Mounting | Surface Mounting |
